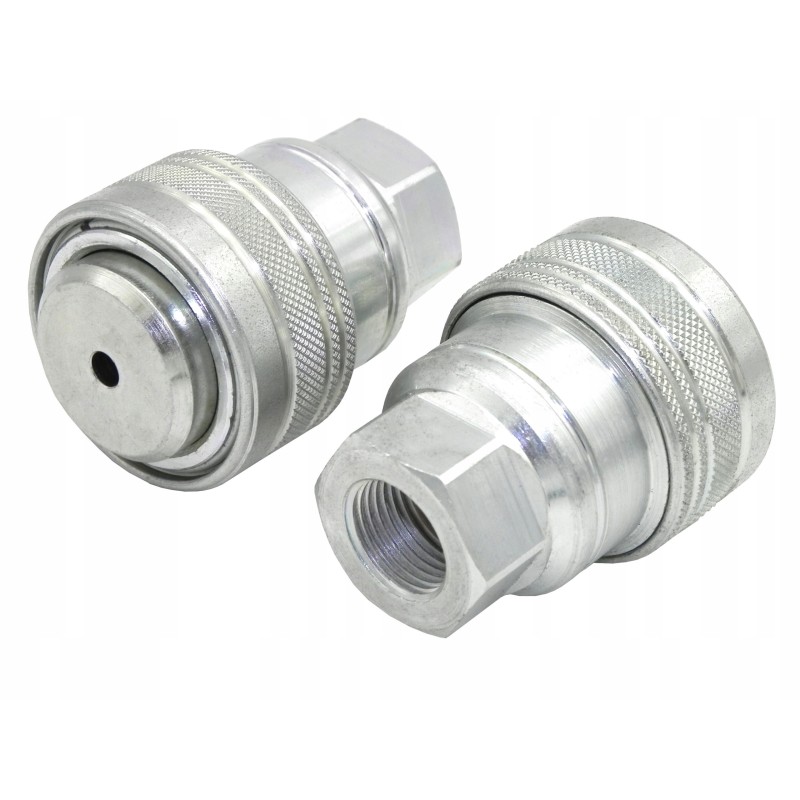

HYDRAULIC BRAKE QUICK CONNECTOR M18-1.5 SOCKET Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and industry in general.

Quick connectors are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks or dirt getting into the system. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor. The brake quick coupler guarantees a tight connection in the hydraulic system. Used to connect hydraulic brake cylinders in trailers or other vehicles.

The sockets are equipped with additional protection - a plug.

Technical data:

Max working pressure (bar): 220

D (mm): 44

B (mm): 55

Nominal flow rate l/min: 40

Connection thread: M18x1.5

Spanner SW (mm): 27

Our offer includes most types of hydraulic motors as well as the entire range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
