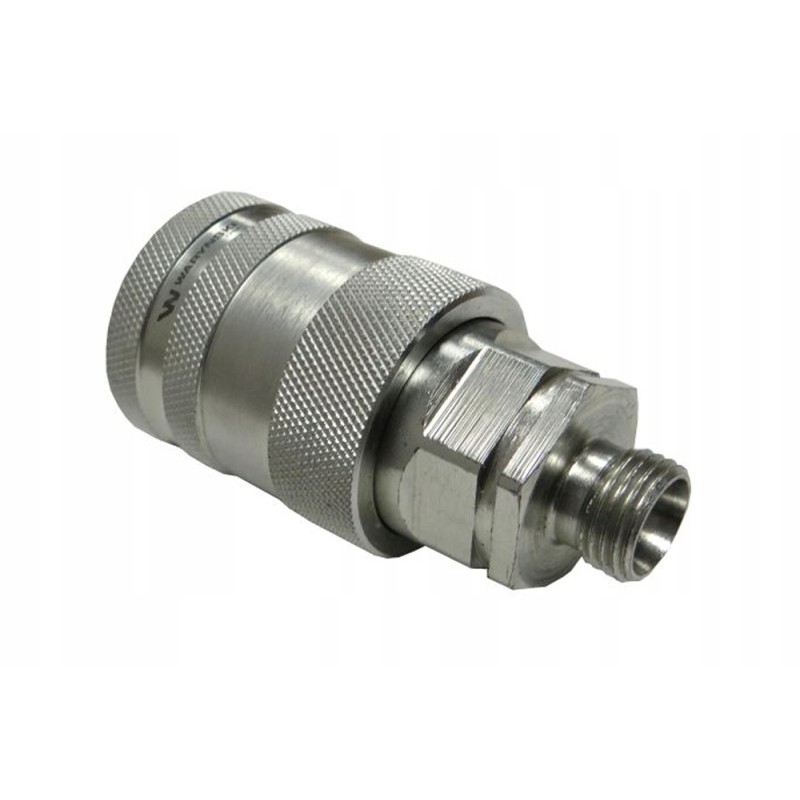

Hydraulic quick connector, M16x1 socket, 5 euro connections

HYDRAULIC QUICK COUPLING SOCKET M16X1.5 EXTERNAL THREAD EURO PUSH-PULL (9100816G) (ISO 7241-A) WARYŃSKIHydraulic quick coupling Waryński - EURO socket (PUSH-PULL). The most popular hydraulic quick connectors with a very wide range of applications. This type of quick connector socket protects against cracking/breaking of the hydraulic hose and loss of hydraulic oil

in case of unintentional tightening - e.g. tractor driving away without disconnecting the hydraulics from the connected machine (installation of the quick coupler socket to the body/housing in the tractor using the locking sleeve). Quick connectors are designed in accordance with dimensional and quality requirements ISO 7241 Series A standard, which specifies in detail the characteristics and dimensions to enable

compatibility of quick connectors produced by different manufacturers in accordance with this standard.

Interchangeable with ISO-A quick connectors from other manufacturers such as: Parker, Faster, Stucchi, DNP,

Tema and others.

Specification:

Operating temperature - from -25°C to +120°C

Thread - External M16x1.5

Max working pressure - 25.0 Mpa / 250 bar Standard - (EURO), ISO-7241-A (ISO-A)

Type - PUSH-PULL

socket Cone - thread - 10L (10mm)

Fits plugs - WIAM14SZ, WIAM16SZ, WIAM16SZL, WIAM18SZ, WIAM18SZL, WIAM22SZ, WIAM22SZL,WIAM20SZ, WIAR12SW, 9100820W, 9100816W, 9100818W, 9100822W,

9100814W, 9100820W

Fits the cover - RM-GNIA12Z, 5049004EURO

Group - Quick connectors

Application:

Quick connectors used in agricultural, forestry, industrial and construction machines.

Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables.

The spring mechanism (works in both directions) makes it easy to connect the plug to the socket, often with one hand Manufacturer: Waryński

WIAM16MZ-PP
