Nipple connector hydr m14x1 5 g1 4 warynski

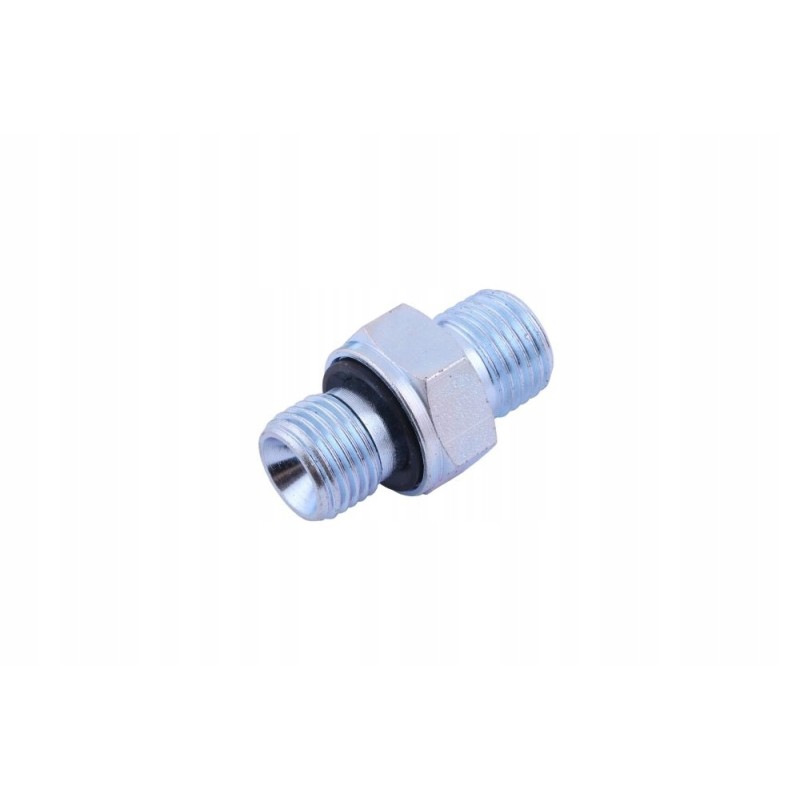

STRAIGHT HYDRAULIC CONNECTOR BB M14X1.5 / G1/4ED14 WITH WARYŃSKI SEALStraight hydraulic connector BB (connection) M14x1.5 (08L) x 1/4' BSP with seal

XGE08LR-1/4'ED (G1) /4ED14) Waryński

* Type: Straight connection (light version)

* Fits: WIAR14MW, WIAR14SW, WIFR14SW, WIFR14MW, WRFB-1/4BSP, WRFU-1/4BSP ,

WKH-B-1/4BSP, WKH3-B-1/4BSP, others

* Type: BB (XGE)

* Thread 1: M14x1.5 external metric

* Thread 1 (cone): 24°

* Thread 1 (dimension for tube): 08mm (08L)

* Thread 2: G1/4'BSP external inch

* Thread 2 (cone): 60°

* Thread 2 (dimension for tube): Additionally

with seal into the body (ED)

* Turnkey size: 19mm (6-corner)

* Group: Hydraulic fittings

-️ Application:

- Connectors are installed in agricultural and industrial machines.

- Hydraulic connectors are widely used in the transport of working fluids in power hydraulics.

- They are made of the highest quality, durable materials very high pressures during operation

in the connected machine.
