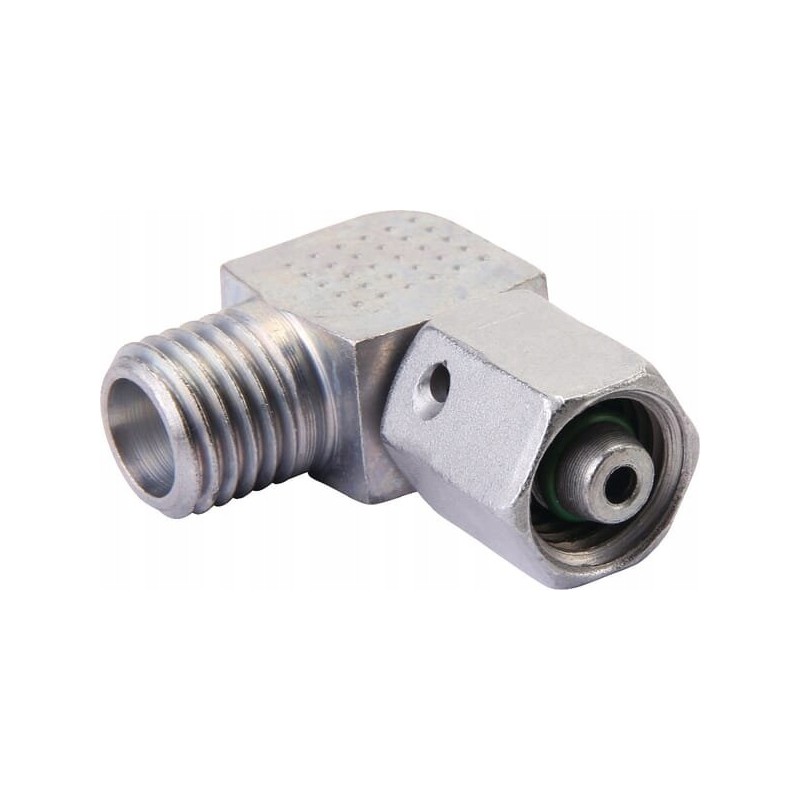

Elbow connector with nut m18x1 5 12l ewsd12l vo

Elbow connector with nut M18x1.5 12L Parameters

Part number: EWSD12L

Unit: piece

Manufacturer: Voss

EAN: 8716106440108

Properties: - High corrosion resistance

Shape: Elbow - 2 sides of the connection

Connection type: Swivel nut

Connection type - male/female: Female

Connection diameter: 12 mm

Connector thread diameter: M18

Connector No. 1 thread pitch: 1.5 mm

Connector Thread Type: Metric

Connector Wrench Size: 17 mm

Connector Type No. 2: Cutting Ring

Connector Type No. 2 - Male/ Female: Male

Connector No. 2 Thread Diameter: M18

Connector No. 2 Thread Pitch: 1.5mm

Connector No. 2 Thread Type: Metric

Wrench size for connector no. 2: 22 mm

Pipe diameter: 12 mm

DIN standard: 2401

Length: 17 mm

Angle: 90 °

Max working pressure: 400 BAR

Seal material on the pipe side: Viton

Series: L

L2: 32 mm

Mounting size 4: 19 mm

Mounting size: 17 mm

Thread M: M18x1.5 mm

Wrench size [S2]: 22 mm

Specifications

- Pre-assembled O-ring

- For direct connection to metric hose nut or pre-assembled connector

Benefits

- Low risk of leakage

Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Stainless steel version available on request

- Viton gasket available on request

Dimension from the axis of the connector to the end of the next connectors

29.5 mm

Dimension from the axis of connector no. 2 to the end of the next connector

24 mm

Internal diameter

- 10 mm

- 8 mm
