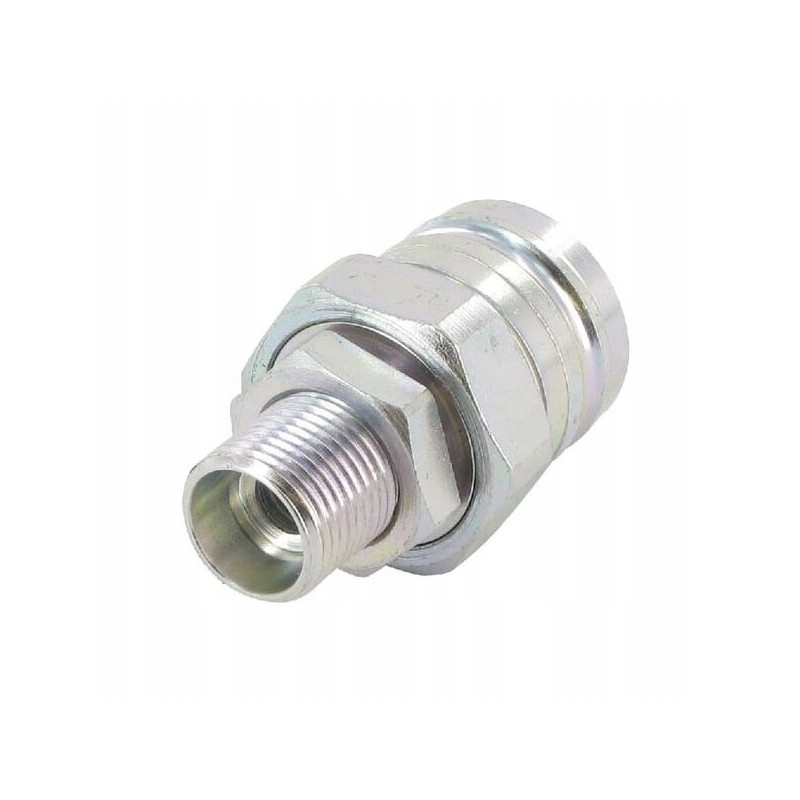

Flat quick connector for the brake system vf 3 8

Flat quick connector for the VF brake system, plug 3/8 external thread metric bulkhead M18x1.5 12L INDEX: VF71815M

Material: Steel

Valve type: Flat

Shape: Straight - 2 sides connection

Size: 10 mm

Outer diameter: 35 mm

ISO standard: 5676

Series: VF

Connection: dB

Connection diameter: 29 mm

Surface treatment: Chrome plated

Type connector thread: Metric

Total length: 56.8 mm

Seal material: Nitrile rubber [NBR]

Weight: 152.1 g

Working pressure: 150BAR

Connector type no. 2 - male/female: Male

Possibility of connecting under pressure: No

Operating temperature max: 125°C

Operating temperature min: -25°C

Type of quick connector lock: Balls around the circumference

Method of connection: Shifting the sleeve

Diameter of connection no. 2: 12 mm

Thread pitch of connector no. 2: 1.5 mm

Method of disconnection : Sleeve offset

Connection type no. 2: Thread

Connection thread diameter no. 2: M18

Connection thread type no. 2: Metric

Flow at 2 bar pressure: 40l/min

Connection type no. 1: Quick connector

Connector type no. 1 - male /female: Male

Connector No. 1 thread diameter: 18mm

Connector No. 1 thread pitch: 1.5 mm

Connector No. 1 wrench size: 32

24 mm

Connector No. 1 thread type - code: 07

Connector No. 1 diameter: 1, 14inch
