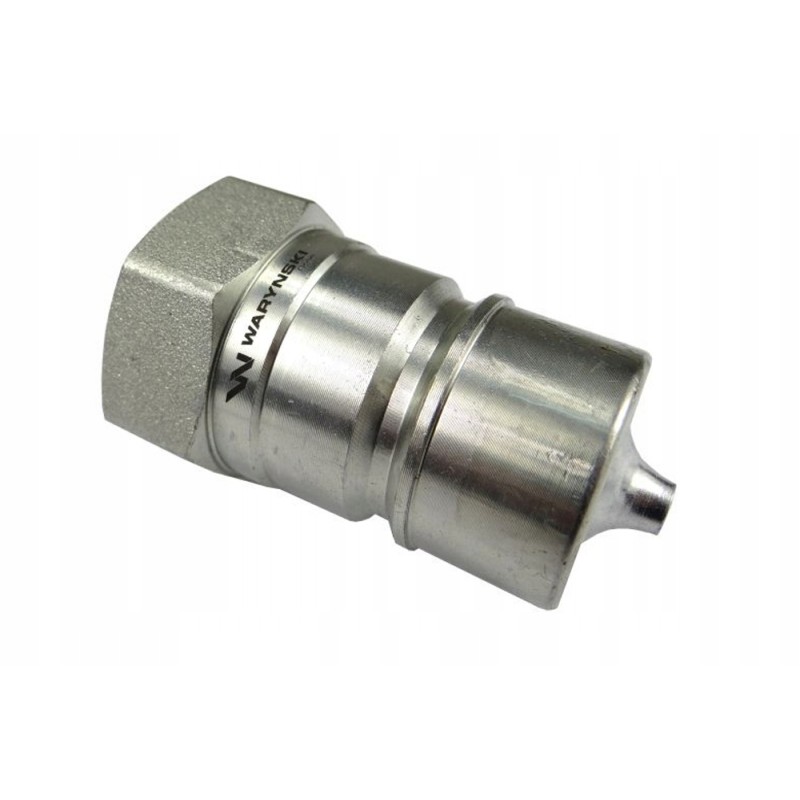

HYDRAULIC QUICK COUPLING PLUG G1\'BSP INTERNAL THREAD ISO 7241-A WARYŃSKIHigh quality hydraulic quick coupling Waryński - ISO-7241-A plug. Most popular
hydraulic quick connectors with a very wide range of applications. Quick connectors
are designed in accordance with the dimensional and quality requirements of the ISO 7241 Series A standard which specifies in detail the characteristics and dimensions to enable the compatibility of quick connectors manufactured by different manufacturers in accordance with this standard. Interchangeable with quick connectors.
ISO-A from other manufacturers such as: Parker, Faster, Stucchi, DNP, Tema and others.
Specification:
Operating temperature: from -25°C to +120°C
Thread: Internal 1'
Max working pressure: 23.0 Mpa / 230 bar Standard: ISO-7241-A (ISO-A)
Fits sockets: WIAR1MW
Cone - thread: BSP
Type: Plugin
No. catalogue: WIAR1SW
Application:
Quick connectors used in agricultural, forestry, industrial and construction machines.
Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism makes it easy to connect the plug to the socket, often with one hand.
Producer: Waryński
WIAR1SW
