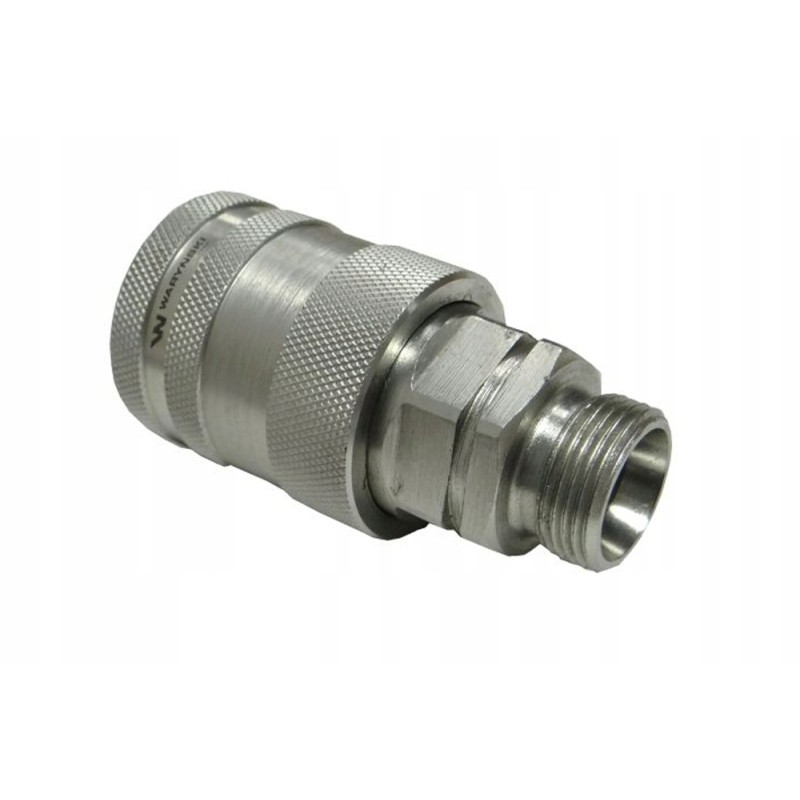

Hydraulic quick connector, M22x1 socket, 5 euro connections

HYDRAULIC QUICK COUPLING SOCKET M22X1.5 EXTERNAL THREAD EURO PUSH-PULL (9100822G) (ISO 7241-A) WARYŃSKIHydraulic quick coupling Waryński - EURO socket (PUSH-PULL). Most popular

hydraulic quick connectors with a very wide range of applications. This kind

the design of the quick connector socket protects against cable breakage/breakage hydraulic system and loss of hydraulic oil in case of unintentional use tension - e.g. driving away the tractor without disconnecting the hydraulics from the connected one machine (installation of the quick coupler socket to the body/housing in the tractor using the locking sleeve). Quick connectors are designed in accordance with dimensional requirements and quality standards of ISO 7241 Series A, which specifies the characteristics in detail and dimensions to enable compatibility of quick connectors manufactured by different

manufacturers in accordance with this standard. Interchangeable with other ISO-A quick connectors manufacturers such as: Parker, Faster, Stucchi, DNP, Tema and others.

Specification:

Operating temperature - from -25°C to +120°C

Thread - External M22x1.5

Max working pressure - 25.0 Mpa / 250 bar Standard - (EURO), ISO-7241-A (ISO-A)

Type - PUSH-PULL

socket Cone - thread - 15L (15mm)

Fits plugs - WIAM14SZ, WIAM16SZ, WIAM16SZL, WIAM18SZ,

WIAM18SZL, WIAM22SZ, WIAM22SZL, WIAM20SZ, WIAR12SW, 9100820W,

9100816W, 9100818W, 9100822W, 9100814W, 9100820W

Fits the cover - RM-GNIA12Z, 5049004EURO

Group - Quick connectors

Application:

Quick connectors used in agricultural, forestry, industrial and construction machines. Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism (works in both directions) makes it easy to connect the plug to the socket, often with one hand.

Manufacturer: Waryński

WIAM22MZ-PP
