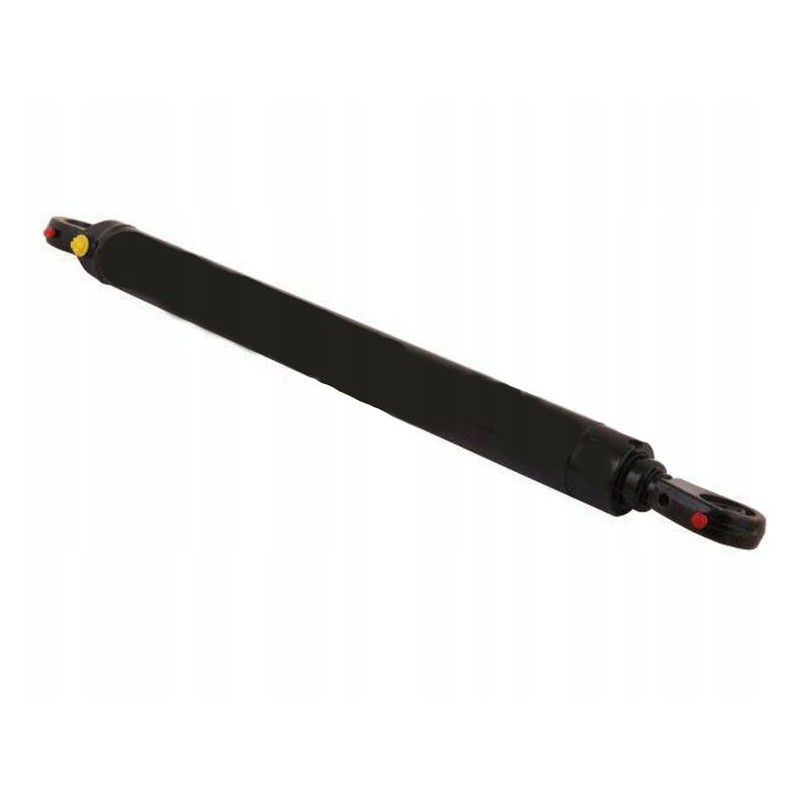

Single-sided cylinder cj2f50 40 500 warynski

Hydraulic cylinder - single-sided actuator CJ2F50/40/500 Waryński Hydraulic cylinder - single-sided actuator CJ2F50/40/500 Waryński Hydraulic cylinders (cylinders) are widely used in agriculture, industry and construction. The task of the hydraulic actuator is to convert the pressure energy of the working fluid into mechanical energy (sets the piston in a straight-line and reciprocal motion).

Waryński hydraulic actuators are characterized by:

1. High technological standard (guarantees the preservation of repeatability).

2. Tightness control of the finished product included in the production process (all hydraulic cylinders are subjected to a low-pressure tightness test at the production stage).

3. Extended quality control of the finished product.< p>

4. Increased service life (due to properly selected material and maintaining production standards for the first assembly).

5. Easy product identification (applied, among others, to the external surface of the steel pipe).< p>

6. Detailed specification (ensures easy search for specific parameters)

Manufacturer: Waryński Original

Product code: 44036822

Product code: W -SH1P40H500Z

Designation: W-SH1P40H500Z

Steel pipe. (outer dimension): Ø60.3mm

Stroke: 500mm

Type: single-acting

Piston rod (rod): Ø40mm

Ears (hole): Ø40mm

Input 1: M16x1.5 internal thread

Interchangeable indexes: CJ2F50/40/500

Required filtering accuracy: ≤ 25µm

Dimension after folding: 740mm

Dimension after unfolding: 1240mm

Operating temperature range: -30C to +80C

Recommended factor working: according to PN-C-96057-04:1991, ISO 6743/4, category HVLP/HV

Pressure (range): 16-32 Mpa (160-320 bar)
