Elbow with locknut bsp 1 2 unf 3 4

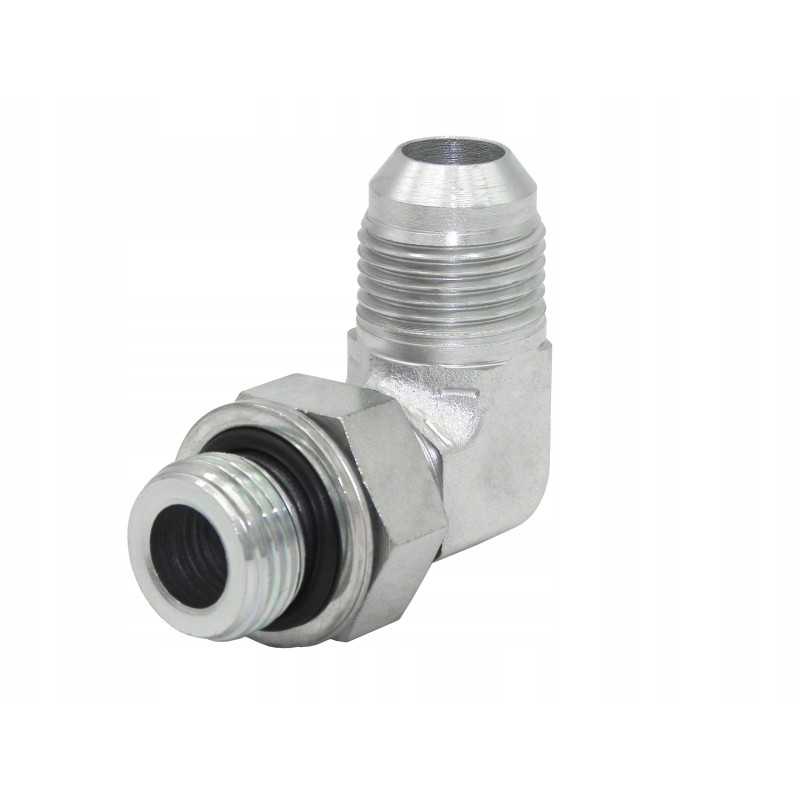

HYDRAULIC ELBOW WITH LOCK NUT BSP 1/2'' - UNF 3/4'' Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Elbow connection bodies included with a lock nut (lock nut ) and the sealing washer and gasket. The connectors are intended for installation in actuators, pumps and hydraulic distributors. One side of the flat connection without a cone is called the connection side (with a seal and locknut), the other side with an external thread and a cone for connecting to the hydraulic hose.

Technical data:

Thread on the connection side: external inch BSP 1/2''

Thread on the other side: external inch UNF 3/4''

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant

We offer most types of hydraulic motors and also a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
