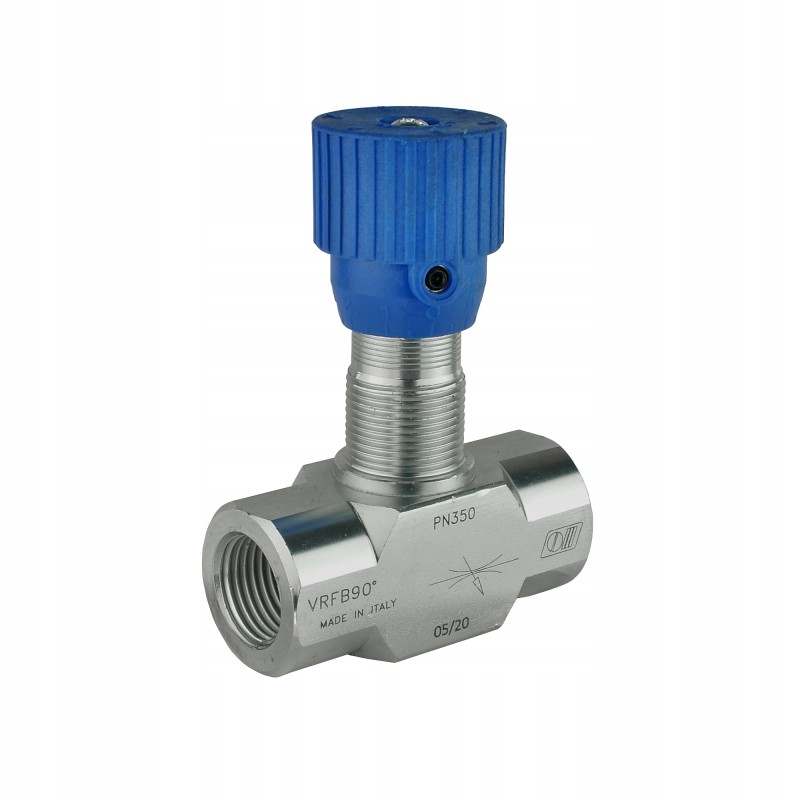

Hydraulic choke valve 2nd adjustable 3 8 30l

VRFB 90 3/8' HYDRAULIC VALVE, TWO-WAY CHOKE WITH ADJUSTMENT Production:

Original Italian product of the Oleodinamica Marchesini brand, symbol: VRFB 90° 3/8', 1.35.00.010

Application:

Widely used in hydraulic systems in agriculture and horticulture , forestry, construction and broadly understood industry.

Principle of operation:

The throttling valve regulates (throttles) the flow in both directions. The adjusted flow depends on the change in oil pressure in the system. Adjustment is made using a knob, the settings can be secured with a locking screw.

Connection:

Connect V to the power line and C to the receiver or vice versa.

Technical data:

Maximum flow: 30 l/min Number of hydraulic holes in the body: 2 Internal threads in the body: 3/8'' [BSP] Body material: galvanized steel Adjustment knob material: plastic Permissible maximum pressure: 350bar Weight: 0.352 kg

Temperature range and oil type:

Permissible ambient temperature: -40 C to + 60 C Permissible oil temperature: -15 C to +80 C Oil type: Mineral oil-based hydraulic oil

Hydraulic diagram of the VRFB 90° valve (photo):
