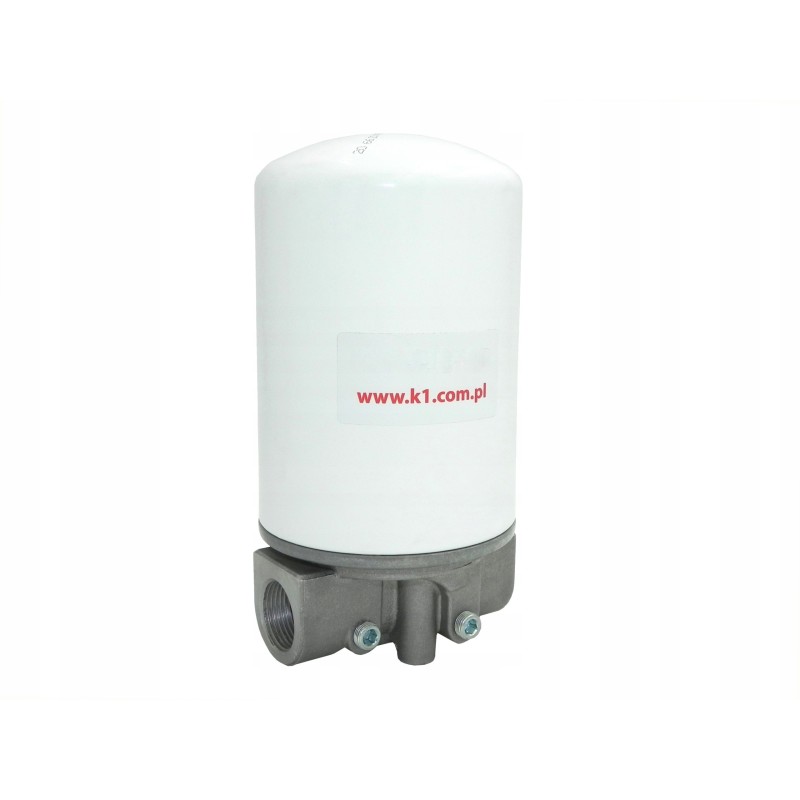

Hydra linear return filter 3 4 cb 32 902301

LINEAR FILTER FOR RETURN MOUNTING MAXIMUM FLOW: 55L/min Replacement for: CS 050 P10A, SH 63061, SPH18050, 0080MG010P, JCB OEM 32/902301, HF6173, P171605, P550268

Application:

Wide range used in hydraulic systems in agriculture, construction and industry.

Filter installed in external hydraulic systems, on the return line. It has a very wide range of applications in hydraulics and protects delicate components of the set, such as the pump and distributor, against damage. It can be mounted directly to the tank.

The filter is equipped with a special so-called bypass valve, which ensures bypass of the oil stream in case of dirt and blockage of the filter mesh. The valve is activated at a pressure of 1.7 bar and protects the filter against bursting. We recommend selecting filters with a relatively higher flow than required in a given hydraulic system. The reason for this is that the use of thick oil or quite low, negative temperatures can reduce the flow by up to 40%.

Technical data:

Filter type: in-line return

Internal thread (on both sides): 3/4'

Filtration: 10 µ

Filter material: impregnated cellulose

Max. pressure: 12bar

Burst pressure: 25bar

Bypass valve pressure: 1.75bar

Flow rate:

The following data is based on a system with mineral oil with a viscosity of 30mm²/s (cSt) and a maximum drop pressure 0.4 bar for return filters and 8 kPa for suction filters.

Return: 55 L/min

Suction: 16 L/min

The filter insert is replaceable and can be purchased at our other auctions
