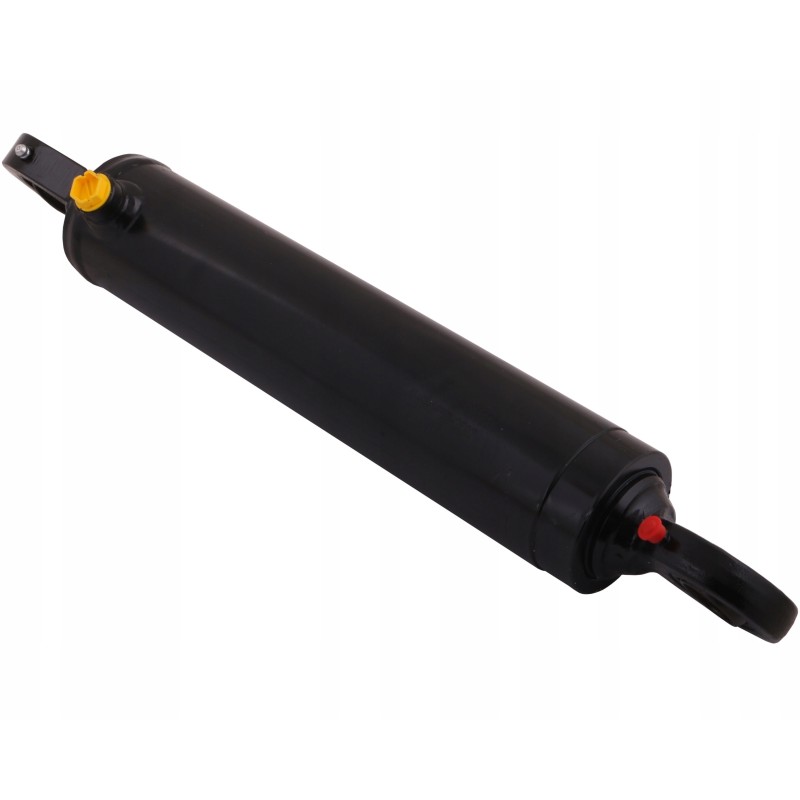

Single-sided hydraulic actuator Zetor 425 675 Warynski

Hydraulic cylinder, single-acting auxiliary cylinder for Zetor SMN.50.250, 70118033, 701180451/PL WaryńskiHydraulic cylinder, single-acting auxiliary cylinder Waryński *Technical data:

*Type: single-acting

*Ears ( hole): Ø25mm

*Input 1: M14x1.5 internal thread

*Input 2: -

*Dimension after folding: 425mm

*Dimension after unfolding: 675mm

*Piston rod (rod): Ø50mm

*Steel pipe. (external dimension): Ø70mm

*Pressure (range): 16-32 Mpa (160-320 bar)

*Recommended working medium: according to PN-C-96057-04 :1991, ISO 6743/4, cat HVLP/HV

*Required filtering accuracy: ≤25µm

*Operating temperature range: `-30°C to +80°C

Hydraulic cylinders from Waryński are characterized by:

* High technological standard (guarantees repeatability).

*Tightness control of the finished product included in the process production (all hydraulic cylinders are subjected to a low-pressure leak test at the production stage).

* Extended quality control of the finished product.

* Increased service life (due to properly selected material and maintaining production standards for the first assembly).

* Easy product identification (marked, among others, on the outer surface of the steel pipe).

* Detailed specification (ensures easy search for specific parameters)

-️ Application: Hydraulic cylinders (cylinders) are widely used in agriculture, industry and construction. Fits: Zetor. The task of the hydraulic actuator is to convert the pressure energy of the working fluid into mechanical energy (sets the piston in a straight-line and reciprocal motion).

*Producer: Waryński
