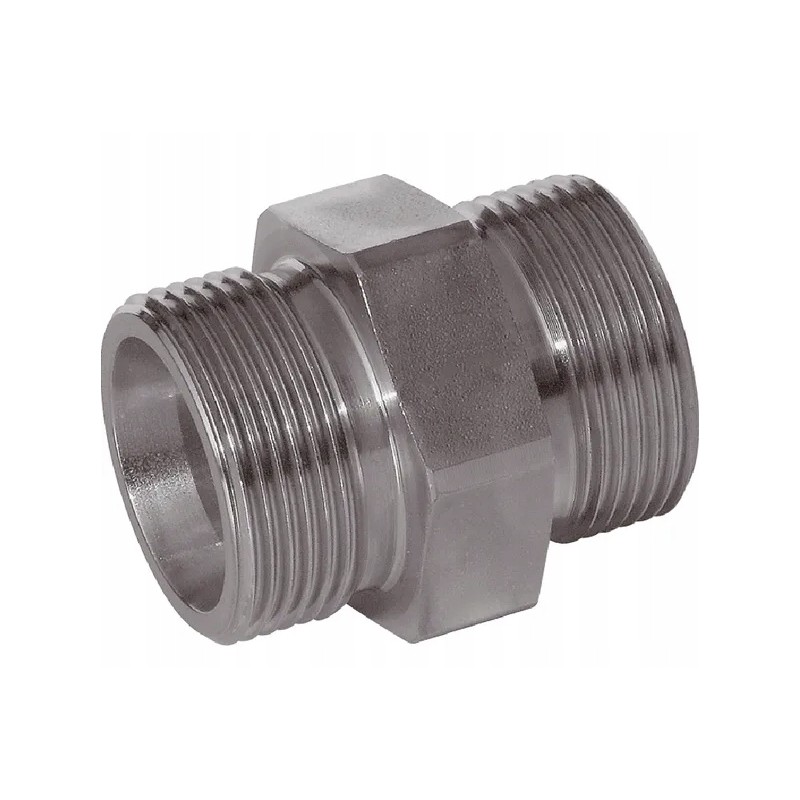

Gs12l straight connector m18x1 5 12l

GS12L Straight connector M18x1.5 12LEAN

8716106439843

Advantages

Limited risk of leakage

Shape

Straight - 2 sides of connection

Connector type no. 1

Cutting ring

Connector type no. 1 - male/female

Male

Connection diameter

12 mm

Thread diameter of connector no. 1

M18

Thread pitch of connector no. 1

1.50 mm

Connector thread type

Metric

S1 Wrench size for connector no. 1

19.0 mm

Connector type no. 2

Cutting ring

Connector type no. 2 - male/female

Male

Connection no. 2 diameter

12 mm

Thread diameter of connection no. 2

M18

Thread pitch of connection no. 2

1.50 mm

Connection No. 2 thread type

Metric

S2 Wrench size for connector No. 2

22.0 mm

L1 Distance between joints

14 mm

Pipe diameter

12 mm

DIN standard

2353

2401

Inner diameter

10 mm

L Total length

28 mm

Surface treatment

Zinc

Nickel-plated

Max working pressure

400 BAR

Series

L
