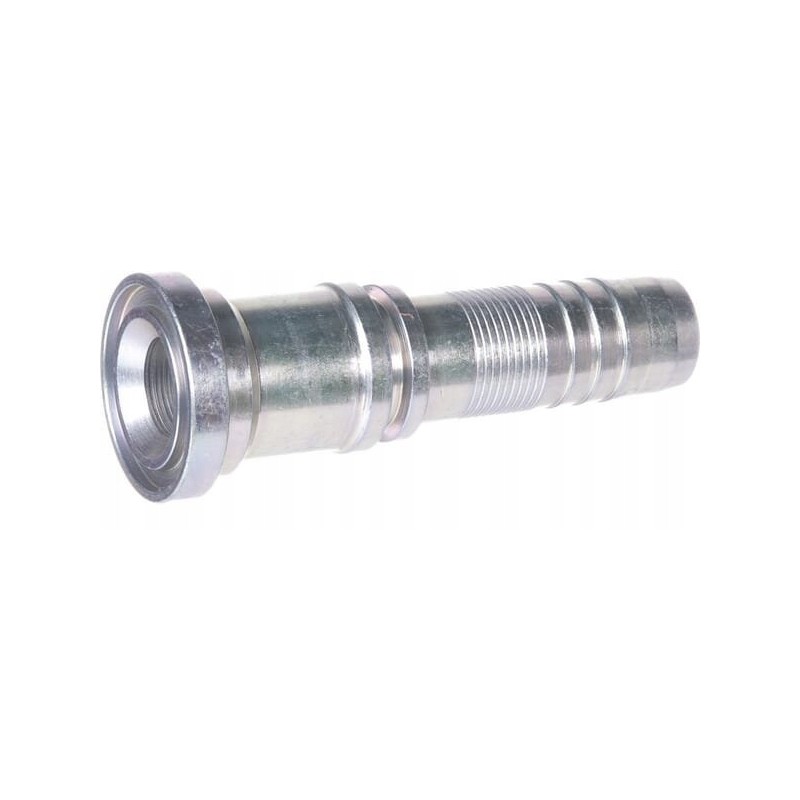

Hose end sfl ns with flange 3000 dn25 44 5mm

SFL-NS hose end with flange 3000, DN25 44.5 mm Parameters

Part Number: SFLNS2516

Unit: Piece

Manufacturer: Alfagomma

Shape: Straight - 2 Sides Connector

Connector Type No. 1: Flange

Connector Type No. 1 - Male/Female: Male

Connector No. 1 Diameter: 1 inch

Connector Type No. 2: Hose connector

Connector type no. 2 - male/female: Male

Connection diameter no. 2: 1 inch

Flange outer diameter: 44.5 mm

Flange PSI series: 3000

Max. working pressure: 345 BAR

Number reference OE: H1343310-161600

Product description

Alfagomma No-Skive compression fittings (NS type) are designed for use with Alfabiotech high-pressure hoses.

Advantages

- Compression fittings enable quicker and easier crimping of hoses, helping to save costs.

- During this process, less pollution, waste and unpleasant odors are produced.

- No special tools are needed for cutting hoses.

Product details

- Alfagomma No-Skive compression fittings are used for Alfabiotech high-pressure hoses.

- Thanks to the use of these tips, there is no need to cut the outer and inner layers of the hose.

Dimension from the axis of the joint to the end of the next joint 53.5mm
