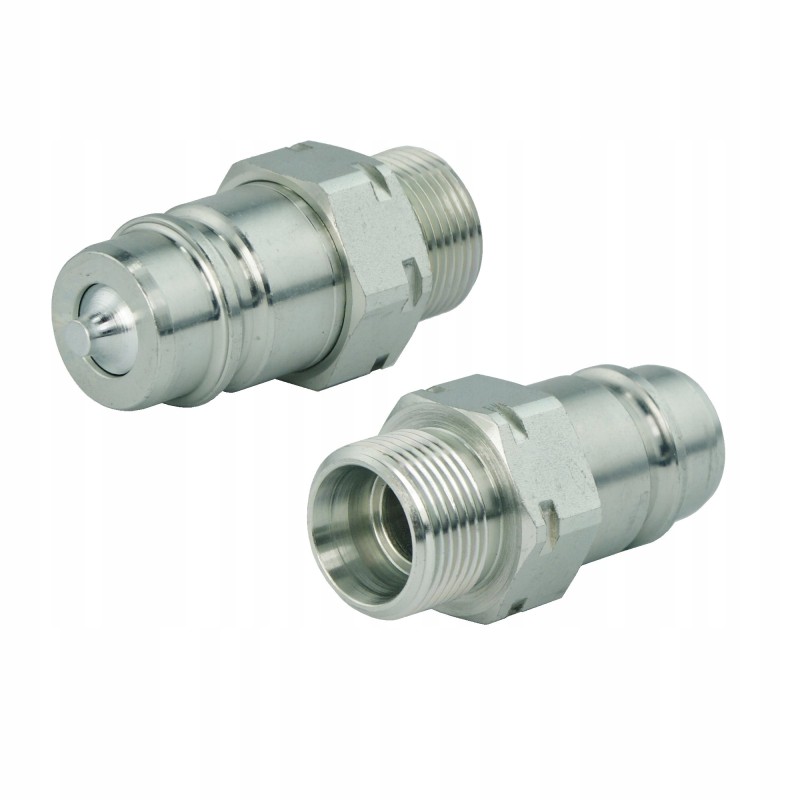

Hydraulic quick connector, Euro connector, M16 plug

HYDRAULIC QUICK CONNECTOR PLUG TYPE EURO THREAD 16x1.5 Production:

Original product of the Hydrolider brand, symbol: 1.60.55.128

Application:

It is widely used in hydraulic systems in agriculture , horticulture, forestry, construction and broadly understood industry.

Quick connectors are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks or dirt getting into the system. Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Helpful data:

M16x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 15.6 - 15.9

Inner diameter [mm]: 14.2 - 14.6

Technical data:

Thread on the cable side: external metric 16x1.5

Thread type: short, external

Clamping cone angle: 24° (typical for the Polish standard)

Quick connector type: euro plug ISO standard

Material: galvanized steel

Weight: 0.20kg

Liquid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant
