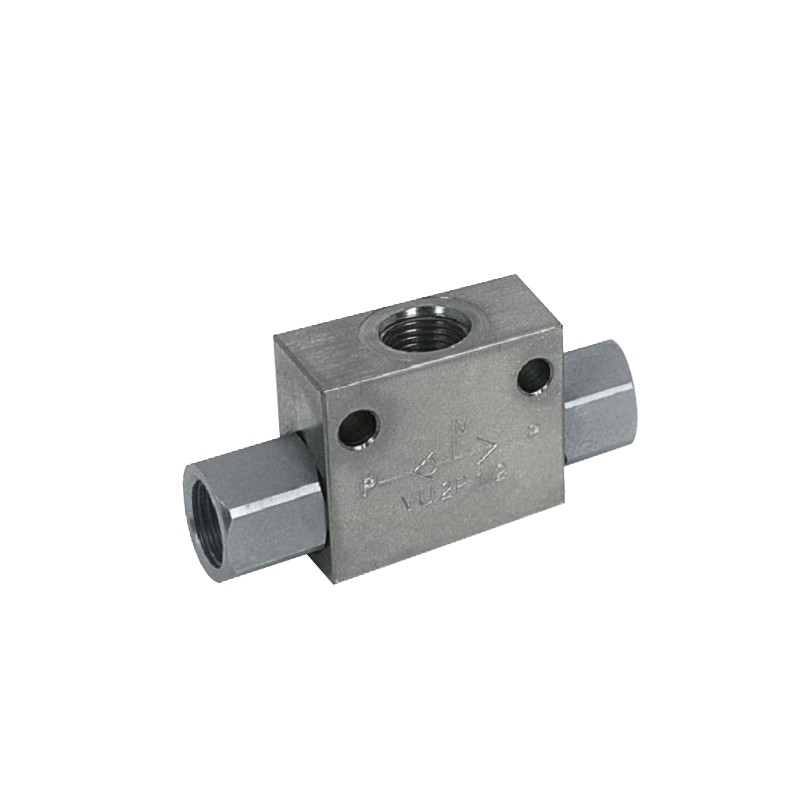

Hydraulic switching valve vu2p 3 8 45l

LOGICAL-ALTERNATIVE' SWITCHING hydraulic valve VU2P 3/8' 45LKODE SKRAW-MET:[0328]The logic-alternative valve is used to connect two different power sources.

The input path connected to the higher pressure is automatically connected to the output path when the second input path is closed.

The valve is used in agricultural and industrial machines, as well as other hydraulically controlled devices.

Made in Italy, solidly made. Connection: connect P (left) to the supply line and P (right) to the second receiver.

Maximum flow : 45L/min.,

Internal threads in the body: G3/8' connection port,

Permissible pressure: max. pressure. 250 Bar,

Permissible ambient temperature: -40'C to +60'C,

Permissible oil temperature: -15'C to +80'C,

Oil type: mineral oil-based hydraulic oil,

Material: steel body galvanized.
