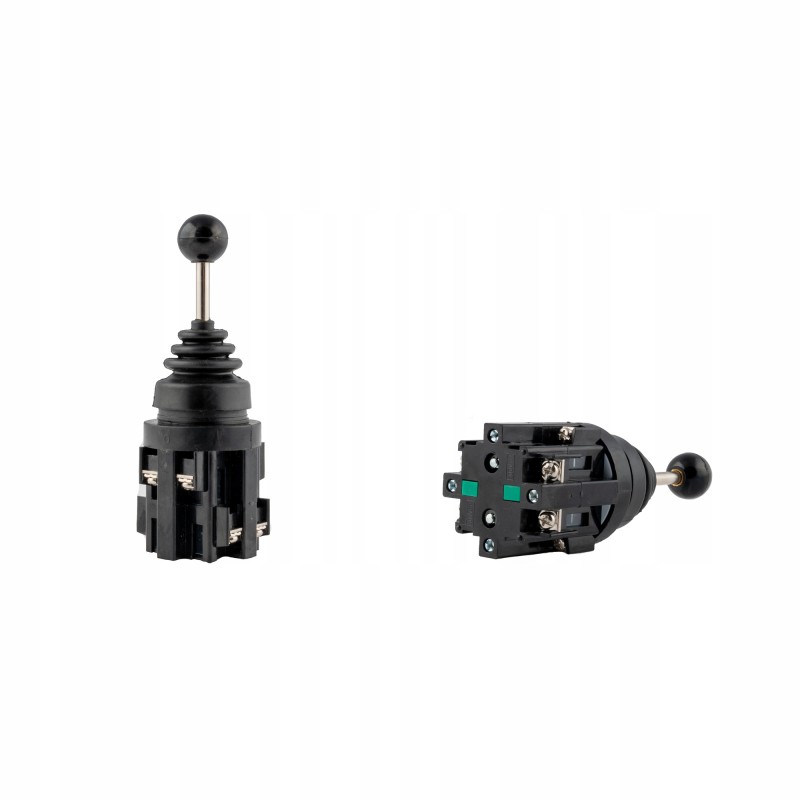

Joystick electr 30mm ms 2xon off 2xon hydrolider

JOYSTICK 5-POSITION ELECTRIC MANIPULATOR Production:

Hydrolider, manufacturer's symbol: 1.10.61.001

Application:

Widely used in hydraulic systems in agriculture, construction and industry.

Lever manipulator, enables control of two sections in an electrically controlled hydraulic distributor 12V and 24V

Technical data:

Dimensions: 51 x 55 x 146 mm Lever material: Steel Operating method: Monostable (without latch) Number of working positions: 4 Contact sets: 4 x NO Load capacity of AC contacts: 6A / 250V (with resistive load) Load capacity of DC contacts : 2.2A / 110V (with resistive load) Insulation resistance min.: 100MΩ Test voltage: 2.2kV Mechanical durability: 5*1050 cycles Electrical durability: 5*1050 cycles Operating temperature: -20....50°C

General information:

Has 4 unstable positions and one neutral center position. If the controller releases the joystick, it returns to the middle - neutral position. Designed for installation in a Ø 30 mm hole. Installation is done by unscrewing the lever ball, unscrewing the ring with cover, inserting the joystick through the hole and screwing the ring and ball back on. It has a rubber sealing cover that protects against dust, water and is resistant to oil.

Five-position joystick, example operation with a 2-section distributor:

Neutral position 1 (lever vertical), cylinder piston rods are standing - oil goes to the overflow.

Working position 2 (lever in the forward position), the piston rod of the first cylinder extends.

Working position 3 (lever in the backward position), the piston rod of the first cylinder retracts.

Working position 4 (lever in the left position), the piston rod of the second cylinder extends.

Working position 5 ( lever in the right position) the piston rod of the second cylinder retracts.
