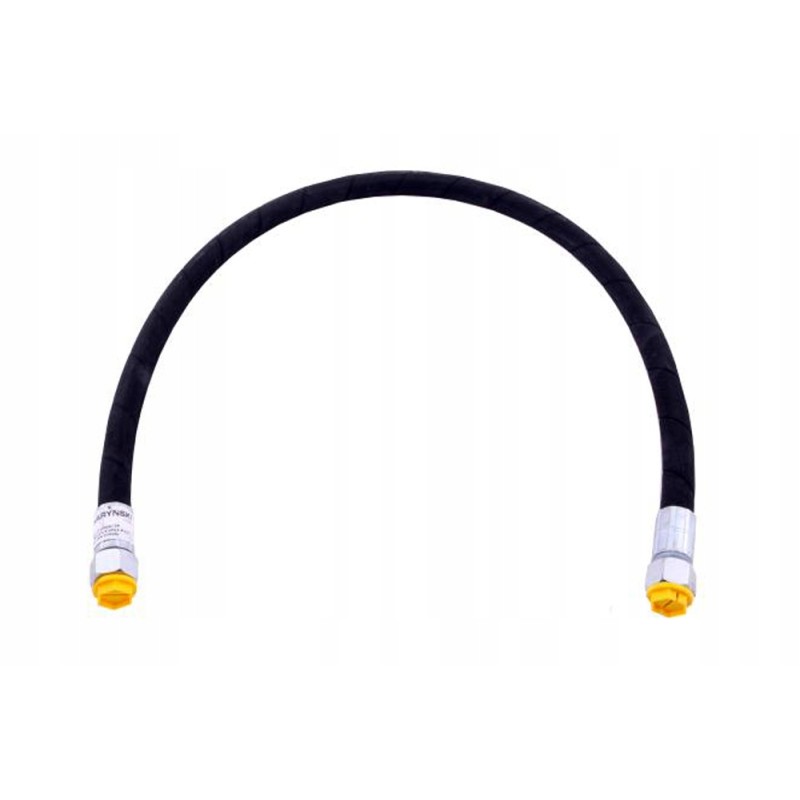

HYDRAULIC HOSE 275 BAR THREAD M22X1.5 STRAIGHT CONE/STRAIGHT FLAT L-1000MM DN12-2SN 27.5MPA WARYŃSKHYDRAULIC HOSE 275 BAR THREAD M22X1.5 STRAIGHT CONE/STRAIGHT FLAT L-1000MM Waryński *Par ameters:
*Operating temperature: -40 to +100 ˚C
*Length: 1000 mm
*Crimping 2/ thread: Straight/nut M22x1.5 (flat)
*Crimping 1 /thread: Straight/nut M22x1.5
Waryński hydraulic hose 275 bar (27.5MPa) - flexible, multi-functional forged hose reinforced with a double braid of steel wire. Tested with pulsation pressure (medium: hydraulic oil). The Waryński hydraulic hose has protection in the form of yellow plugs on its crimped ends. Thanks to this, no contaminants get inside the lines, which could damage the working elements of the hydraulic system. All plugs are threaded and screwed onto the appropriate type of hydraulic hose end.
*Interchangeable indexes: Hydraulic hose thread 22x1.5 336-631-105-520, 7214/07-074/0 UNHZ 500 Cyklop Stomil P11P11/233/13-1000
-️ Application: Hydraulic drives and controls in industry and agriculture Trailer
* Producer: Waryński
