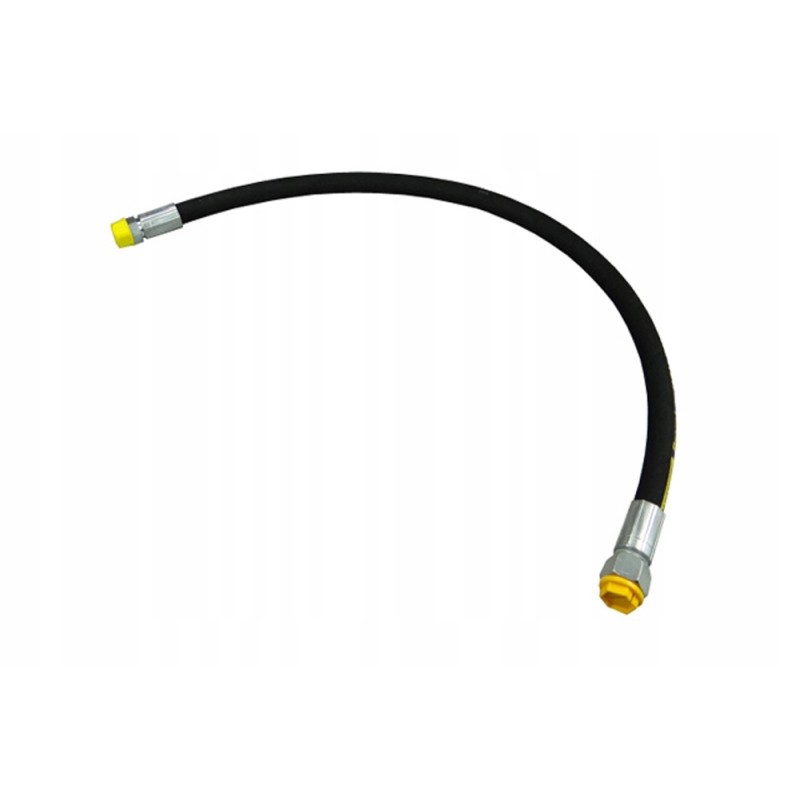

Hydraulic hose m22x1 5 l800mm Warynski

HYDRAULIC HOSE THREAD M22X1.5 STRAIGHT L-800MM DN12-1SN 7214/07-082/0 , 7214/07-083/0 CYKLOP (AB-13-800, P11P21) 16MPA WARYŃSKI HYDRAULIC HOSE THREAD M22X1.5 PROS TE L-800MM Waryński *Parameters:

*Operating temperature: -40 to +100 ˚C

*Length: 800 mm

*Crimping 2/ thread: Straight/external thread M22x1.5

*Crimping 1 /thread: Straight/nut M22x1.5

Waryński hydraulic hose 160 bar (16MPa) - flexible, multi-functional forged hose reinforced with a single steel wire braid. Tested with pulsation pressure (medium: hydraulic oil). The Waryński hydraulic hose has protection in the form of yellow plugs on its crimped ends. Thanks to this, no contaminants get inside the lines, which could damage the working elements of the hydraulic system. All plugs are threaded and screwed onto the appropriate type of hydraulic hose end.

*Interchangeable indexes: Hydraulic hose thread 22x1.5 7214/07-082/0, 7214/07-083/0 Cyklop Stomil P11P21/133/13-800 7214/07-082/0 7214/07-083/0

-️ Application: Hydraulic drives and controls in industry and agriculture Cyklop

* Producer: Waryński
