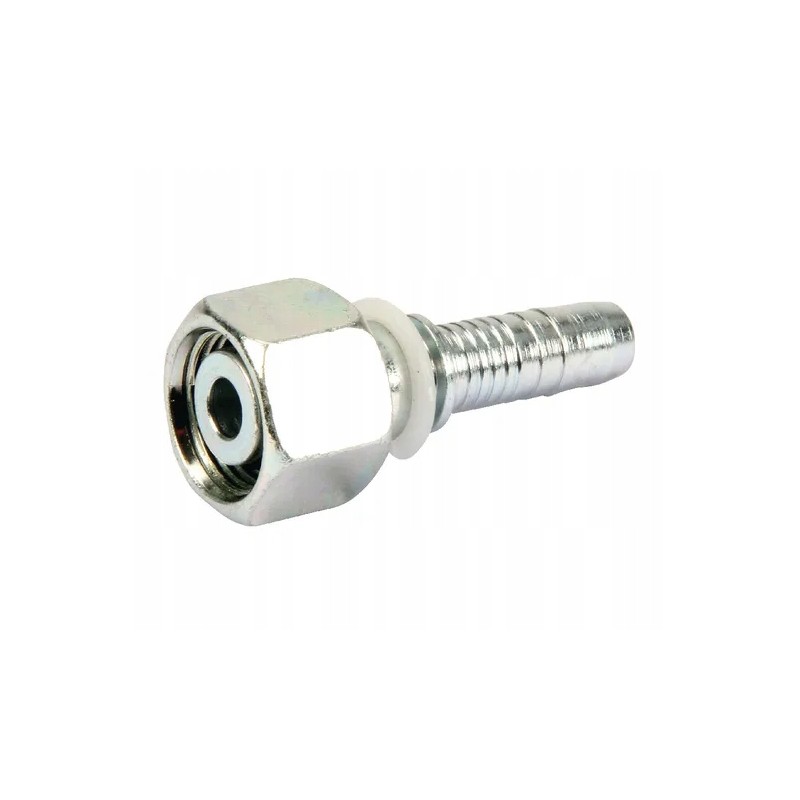

PGLO1318 Nipple DN13-M18x1.5-12L Product Details

Cone, Cone Seal with O-Ring

L Series Cutting Ring Connection

Includes

Nipples

O-Ring Seal

Cone Angle

24°

Shape

Straight - 2 Sides connections

Connector type no. 1

Swivel nut

Conical with O-ring

Connector type no. 1 - male/female

Female

C Length of connector no. 1

27 mm

F1 Thread diameter of connector no. 1

M18

F1 Connector thread pitch No. 1

1.50 mm

CH1 Wrench Size for Connector No. 1

22.0 mm

Connector Type No. 2

Hose Barb

Connector Type No. 2 - Male/Female

Male

Connection Diameter No. 2

1/2 inch

Diameter of Connection No. 2

13 mm

Material

Steel

Surface treatment

Galvanized

White passivated

Series

12L

Connection

Metric union nut with 24° cone and O-ring

Application

Threaded connections with cutting ring, light version with metric union nuts
