Knee with locking nut unf 3 4 orfs 11 16
  • Knee with locking nut unf 3 4 orfs 11 16
  • Knee with locking nut unf 3 4 orfs 11 16

Knee with locking nut unf 3 4 orfs 11 16

15010421221841
£47.92
Quantity
5 Items

Description

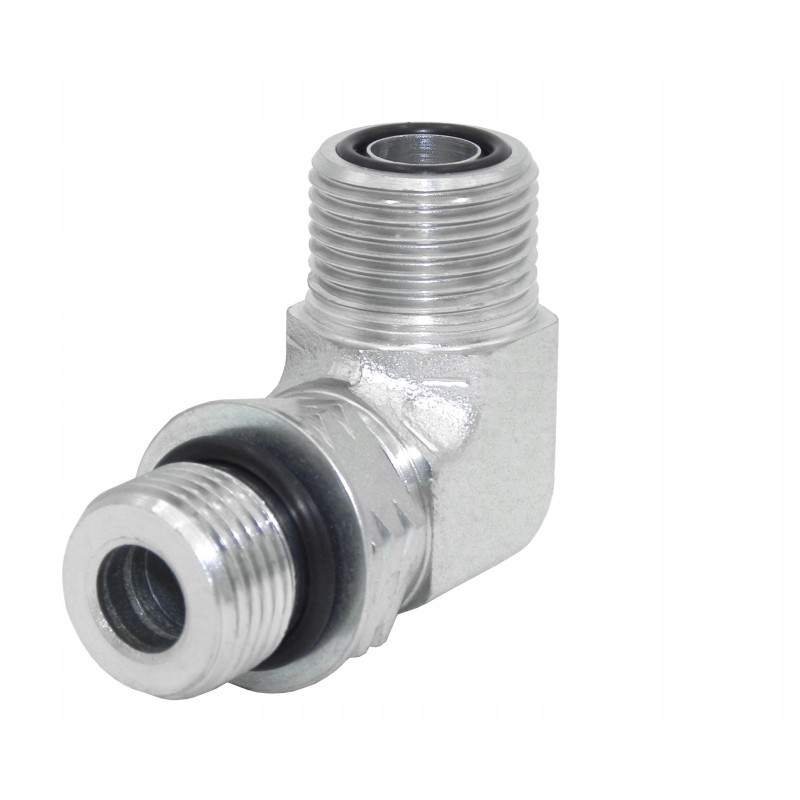

HYDRAULIC ELBOW WITH LOCK NUT UNF 3/4'' - ORFS 11/16'' Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Elbow connection bodies included with a lock nut (lock nut ) and the sealing washer and gasket. The connectors are intended for installation in actuators, pumps and hydraulic distributors. One side of the flat connection without a cone is called the connection side (with a seal and lock nut), the other side with external thread and cone for connecting to the hydraulic hose.

Technical data:

Thread on the connection side: external inch UNF 3/4''

Thread on the other side: external inch ORFS 11/16''

Nominal pressure: 180bar

Maximum pressure: 230bar

Type of liquid: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

Our offer includes most types of hydraulic motors and also a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15010421221841
KPN U3/4/O11/16
5 Items
New

Data sheet

Manufacturer
Perfect Hydraulic
Part Number
KPN U3/4/O11/16
