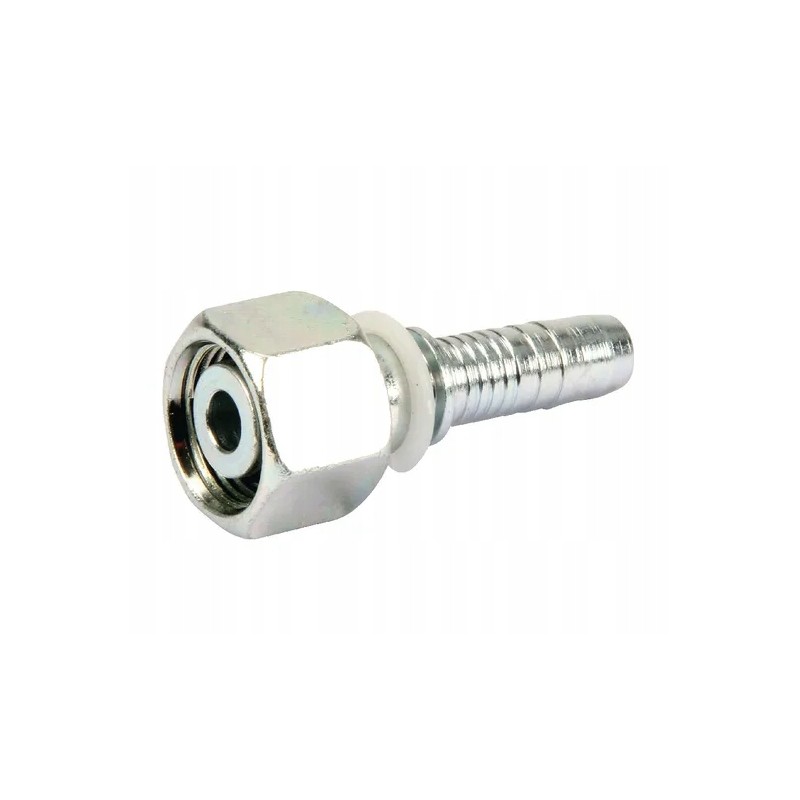

Pglo1622 tip dn16 m22x1 5 15l

PGLO1622 Fitting DN16-M22x1.5-15LProduct Details

Cone, Cone Seal with O-Ring

L Series Cutting Ring Connector

Includes

Tips

O-ring

Cone angle

24°

Shape

Straight - 2 sides connection

Connection type no. 1

Swivel nut

Conical with O-ring

Connection type no. 1 - male/female

Female

Connector no. 1 length

28 mm

Connector no. 1 thread diameter

M22

Connector No. 1 thread pitch

1.50 mm

Connector thread type

Metric

Wrench size for connector no. 1

27.0 mm

Type of connector no. 2

Hose connector

Diameter of connection no. 2

5/8 inch

Connection diameter no. 2

16 mm

Material

Steel

Surface treatment

Galvanized

White passivated

Series

15L

Connection

Metric union nut with 24° cone and self-sealing ring

Application

Threaded connections with cutting ring, light version with metric union nuts
