Straight connection ed bb g3 4 m30x2 hydrolider

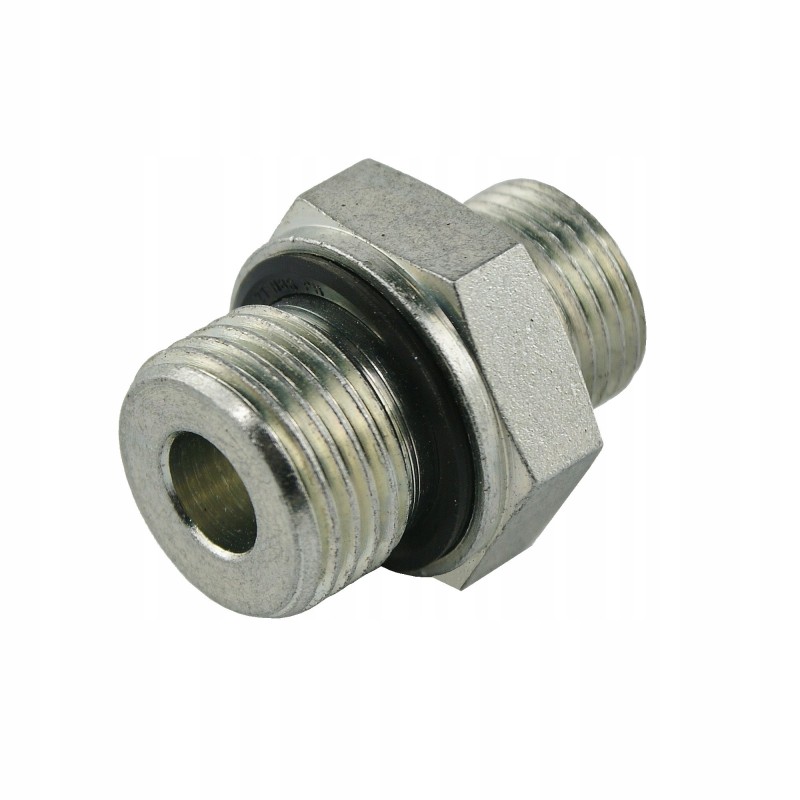

STRAIGHT HYDRAULIC CONNECTION BB 3/4' - 30 Production:

Original product of the Hydrolider brand, symbol: 1.60.13.012

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connection with a rubber seal, screwed into the body of e.g. a pump, cylinder, distributor, etc. Connects the main components of the hydraulic system with hydraulic lines.

The side intended for screwing into the body has an ED seal, no additional seals are required in this place.

The other side is intended for screwing in the pipe, elbow or other connector. Sealing occurs when screwing onto the self-sealing clamping cone. The use of additional seals is also not required here.

The connection is intended only for screwing into the body. Not suitable for connecting two wires. This is done using connectors that can be purchased at our other auctions.

Helpful data:

BSP 3/4' thread diameter measured with a caliper:

Outer diameter [ mm]: 26.1 - 26.4

Inner diameter [mm]: 24.1 - 24.5

M30x2 thread diameter measured with a caliper:

Outer diameter [mm]: 29.6 - 29.9

Inner diameter [mm]: 27.4 - 27.8

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Nominal diameter of the passage: 15mm

Thread on the body side: external inch BSP 3/4'

Thread on the cable side: external metric 30x2

Connection version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type : hydraulic oil

Material:

Weldable, galvanized steel, corrosion-resistant
