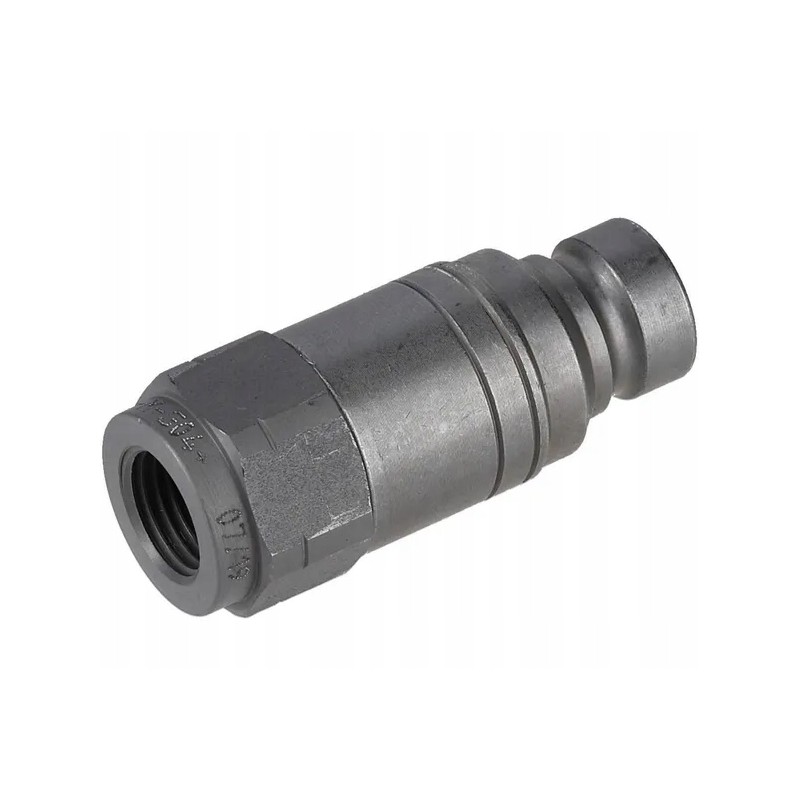

Skv quick connector m plug 1 4 internal thread 1 4

SKVM06C04 Flat quick connector SKV-M plug 1/4' internal thread 1/4' BSPSpecifications

One-handed connection

With a special flat valve

Application

Construction and agricultural machinery

Hydraulic tools

Can be used in ecologically sensitive areas

Fluids based on mineral oil

Properties

With double-side shut-off

Highest corrosion resistance

Benefits

Easy operation

Minimum leakage rate

Connection without air inclusions

Shape

Straight - 2 sides of connection

Size (code)

BG 1

Size

1/4 inch

Size

6.3mm

Connector Type No. 1

Quick Connector

Connector Type No. 1 - Male/Female

Male

ØD1 Connection Diameter

16.1mm

Connector Type No. 2

Thread

Connector Type No. 2 - Male/Female

Female

Thread diameter of connection no. 2

1/4 inch

Number of turns per inch of thread of connection no. 2

19

Thread type of connection no. 2

BSP

Possibility of connection under pressure

No

ISO standard

16028

Flow at a pressure of 2 bar

18 l/min

ØD Outer diameter

28 mm

L1 Total length

54 mm

Material

Steel

Surface treatment

Zinc

Nickel-plated

Working temperature max.

100 °C

Working temperature min.

-30 °C

Seal material

Nitrile rubber [NBR]

Teflon (PTFE)

Connection type

plug

Thread type

internal
