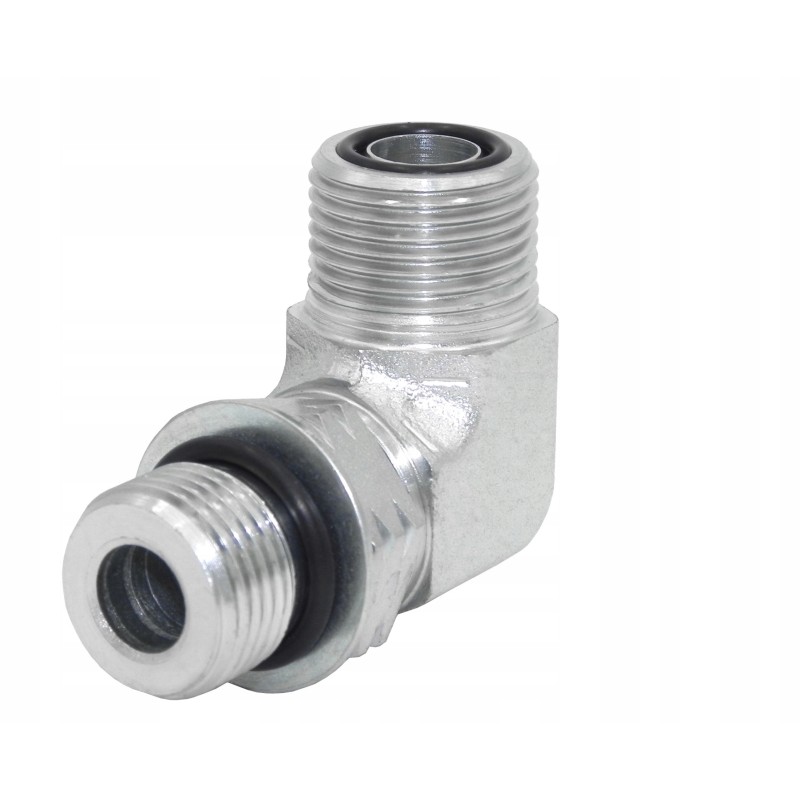

Knee with locknut unf 9 16 orfs 13 16

HYDRAULIC ELBOW WITH LOCK NUT UNF 9/16'' - ORFS 13/16'' Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Elbow connection bodies included with a lock nut (lock nut ) and the sealing washer and gasket. The connectors are intended for installation in actuators, pumps and hydraulic distributors. One side of the flat connection without a cone is called the connection side (with a seal and lock nut), the other side with external thread and cone for connecting to the hydraulic hose.

Technical data:

Thread on the connection side: external inch UNF 9/16''

Thread on the other side: external inch ORFS 13/16''

Nominal pressure: 180bar

Maximum pressure: 230bar

Type of liquid: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

Our offer includes most types of hydraulic motors and also a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
