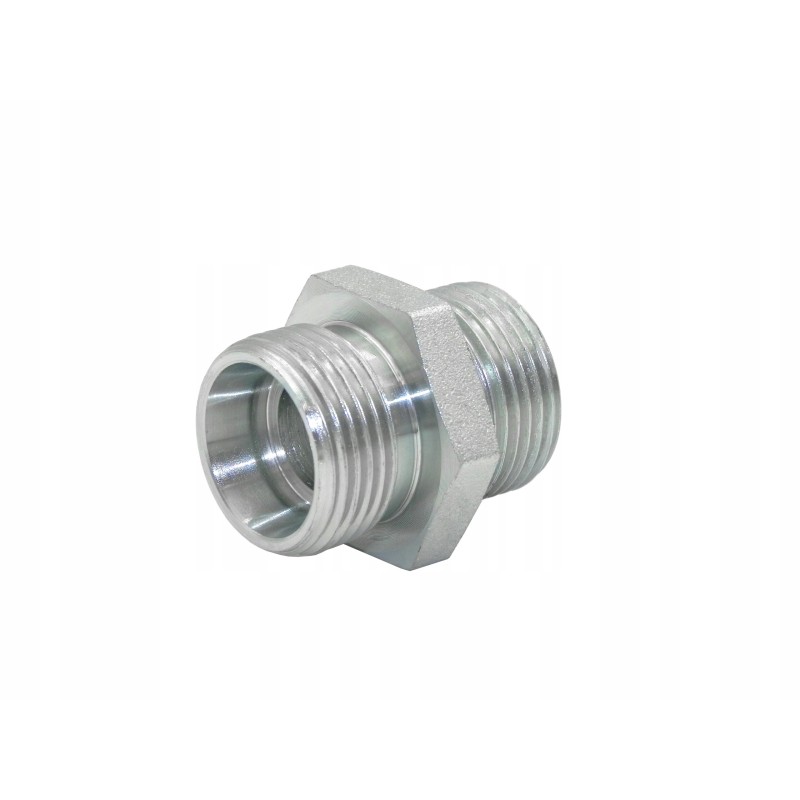

Hydraulic coupling connector 30x2 22l 36x2 28l
  • Hydraulic coupling connector 30x2 22l 36x2 28l
  • Hydraulic coupling connector 30x2 22l 36x2 28l

Hydraulic coupling connector 30x2 22l 36x2 28l

15010424465514
£23.13
Quantity
5 Items

Description
HYDRAULIC CONNECTOR CONNECTOR M30x2 22L - M36x2 28L Application: Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry. Standardized connector, light version with conical clamping self-sealing when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.

Technical data:

Thread on one side: external metric 30x2 22L - light standard

Thread on the other side: external metric 36x2 28L - light standard

Nominal pressure: 180bar

Maximum pressure : 230bar

Type of liquid: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15010424465514
With M30/36 22L28L
5 Items
New

Data sheet

Manufacturer
Perfect Hydraulic
Part Number
With M30/36 22L28L
