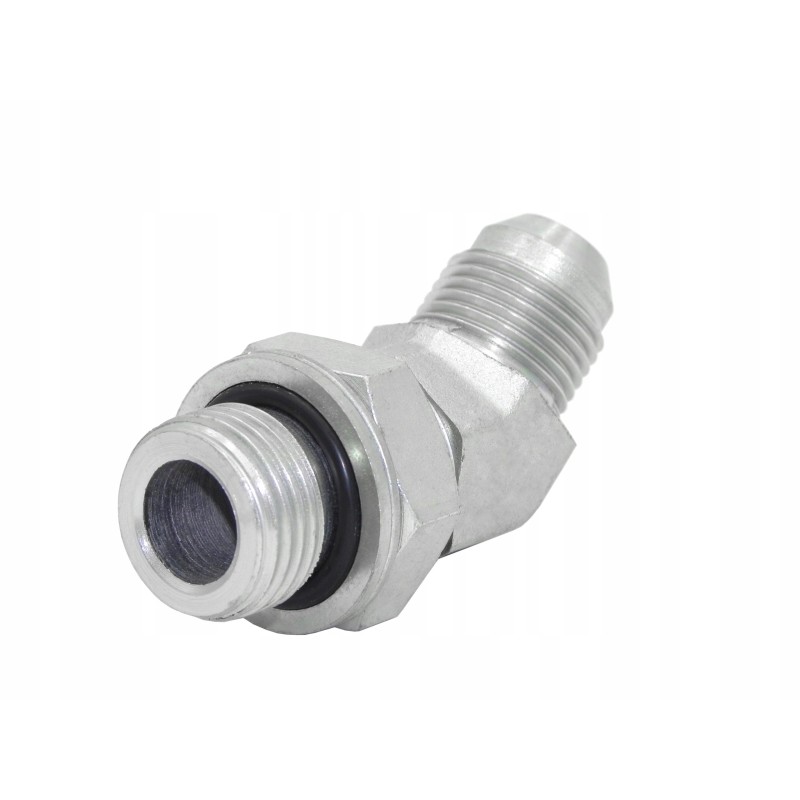

Elbow with locknut 45 degrees bsp 1 2 unf 3 4

HYDRAULIC ELBOW WITH LOCK NUT BSP 1/2''- UNF 3/4'' 45 DEGREESApplication:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Elbow connection bodies included with a lock nut (nut countering) and a sealing washer and gasket. The connectors are intended for installation in actuators, pumps and hydraulic distributors. One side of the flat connection without a cone is called the connection side (with a seal and locknut), the other side with an external thread and a cone for connecting to the hydraulic hose.

Technical data:

Thread on the connection side: external inch BSP 1/2''

Thread on the other side: external inch UNF 3/4''

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant

We offer most types of hydraulic motors and also a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
