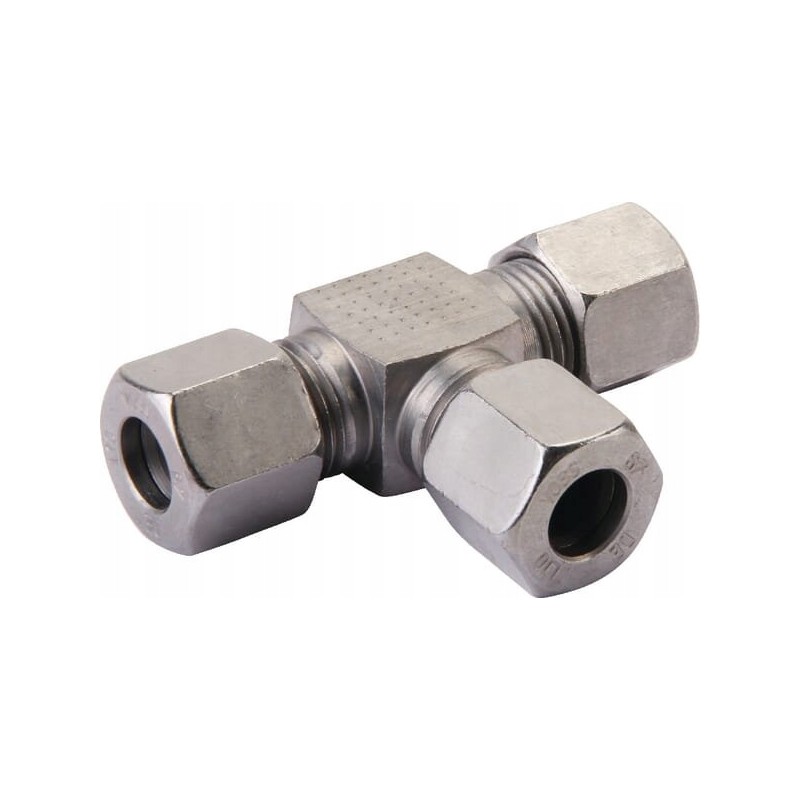

Tee connector m16x1 5 10l

Tee connector M16x1.5 10L Parameters

Part number: TV10L

Unit: Piece

Manufacturer: Voss

Shape: Tee (T) - 3 connections

Connector type #1: Cutting ring

Connector type #1 - Male/Female: Male

Connection diameter: 10 mm

Wrench size for connector no. 1: 19.0 mm

Connector type no. 2: Cutting ring

Connector type no. 2 - male/female: Male

Diameter of connector no. 2: 10 mm

Length of connector no. 2: 15 mm

Connector type no. 3: Cutting ring

Type of connector no. 3 - male/female: Male

Connection diameter no. 3: 10 mm

Inner diameter: 10 mm

Body height: 17 mm

Max working pressure: 500 BAR

Series: L

Advantages

- Cutting ring 2S

Product details

- 2S cutting ring - Optimum connection to the cutting ring and perfect function - High corrosion resistance - Hydraulic hoses

- Hydraulic pipes

DIN standard

- 2353

- 2401

Surface treatment

- Zinc

- Nickel plated
