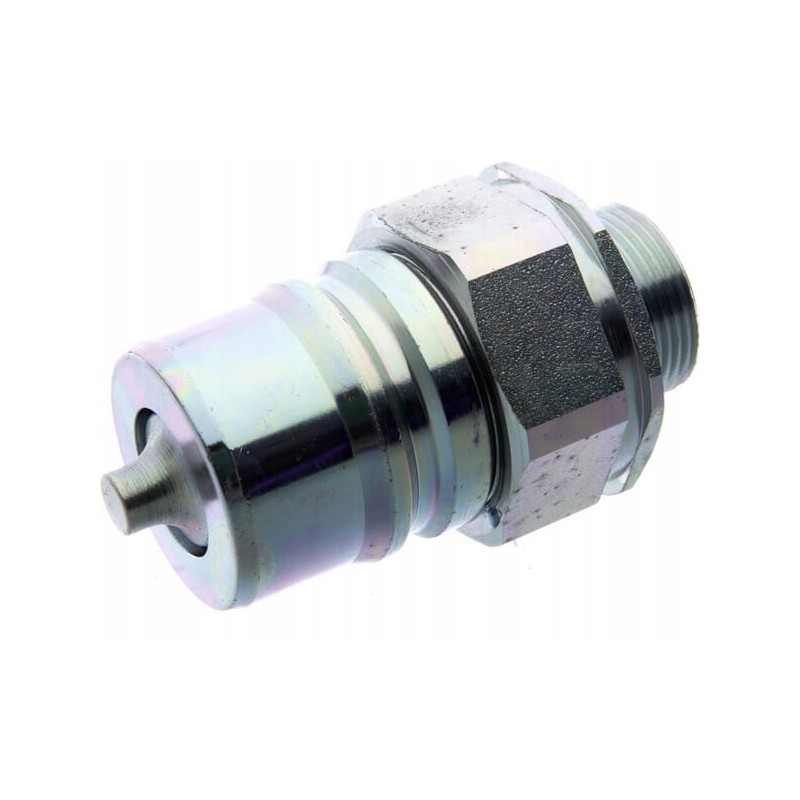

Quick connector socket skp f 3 8 external thread

Quick connector socket SKP-F 3/8' external thread M16x1.5 10L Parameters

Part number: SKPF10L16

Unit: piece

Manufacturer: DNP

Size (code): BG 2

Size: 3/8 inch

Shape: Straight - 2 sides connection

Connector type no. 1: Quick connector

Connector type no. 1 - male/ female: Female

Diameter of connector no. 1: 17.3 mm

Outer diameter: 31 mm

Surface treatment: White passivated

Working pressure: 250 BAR

Working temperature max.: 100 °C

Working temperature min.: -30 °C

Connector No. 2 Type: Thread

Connector No. 2 Type - Male/Female: Male

Connector No. 2 Diameter: 10 mm

Connector No. 2 Thread Diameter: M16

Connector No. 2 Thread Pitch: 1.5 mm

Thread Type connectors no. 2: Metric

Possibility of connecting under pressure: No

ISO standard: 7241-1-A

Total length: 74 mm

Connection type: socket

Application

- Universal use

- Agricultural machinery

- Municipal technology

- Mineral oil based fluids Properties

- Standard agricultural connector

- Push & Pull principle

- Tear-off function

- With cut-off on both sides - Axial actuation of the locking sleeve in both directions (double acting)

Seal material

- Nitrile rubber [NBR]

- Teflon (PTFE)

Series

- CPV

- CNV

-ANV
