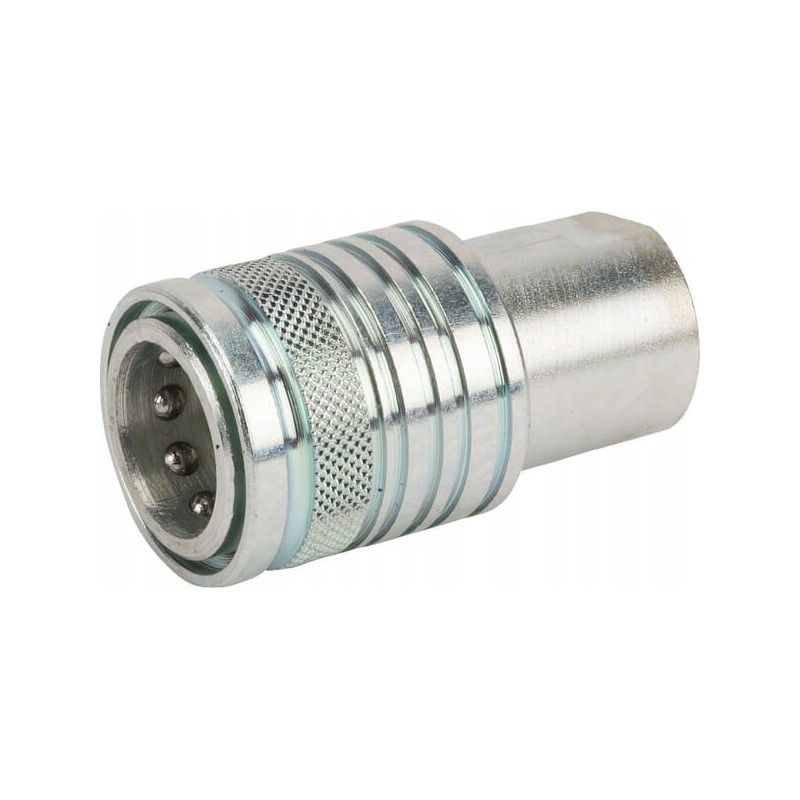

Quick connector socket skp f 1 2 internal thread

Quick connector socket SKP-F 1/2' internal thread M22x1.5 Parameters

Part number: SKPF12IMF22

Unit: art

Producer: Stauff

Size (code): BG 3

Shape: Straight – 2 sides of the connection Connector type no. 1: Quick connector

Connector type no. 1 - male/female: Female

Connector diameter no. 1: 20.6 mm

Thread diameter of connector no. 1 [A]: 22 mm Outer diameter: 38 mm

Material: Steel

Surface treatment: White passivated Working pressure: 250 BAR Operating temperature max.: 100 °C

Operating temperature min.: -30 °C

Connector type no. 2: Thread

Connector type no. 2 - male/female: Female

Connector No. 2 thread diameter: M22

Thread pitch of connector no. 2: 1.5 mm

Connector No. 2 Thread Type: Metric

Possibility of connection under pressure: No

ISO standard: 7241-1-A

Total length: 70 mm

Thread type: Internal

Application

- Universal use

- Agricultural machinery

- Municipal technology

- Mineral oil based fluids Properties

- Standard agricultural connector

- Push & Pull principle

- Tear-off function

- With cut-off on both sides - Axial actuation of the locking sleeve in both directions (double acting)

Seal material

- Nitrile rubber [NBR]

- Teflon (PTFE)
