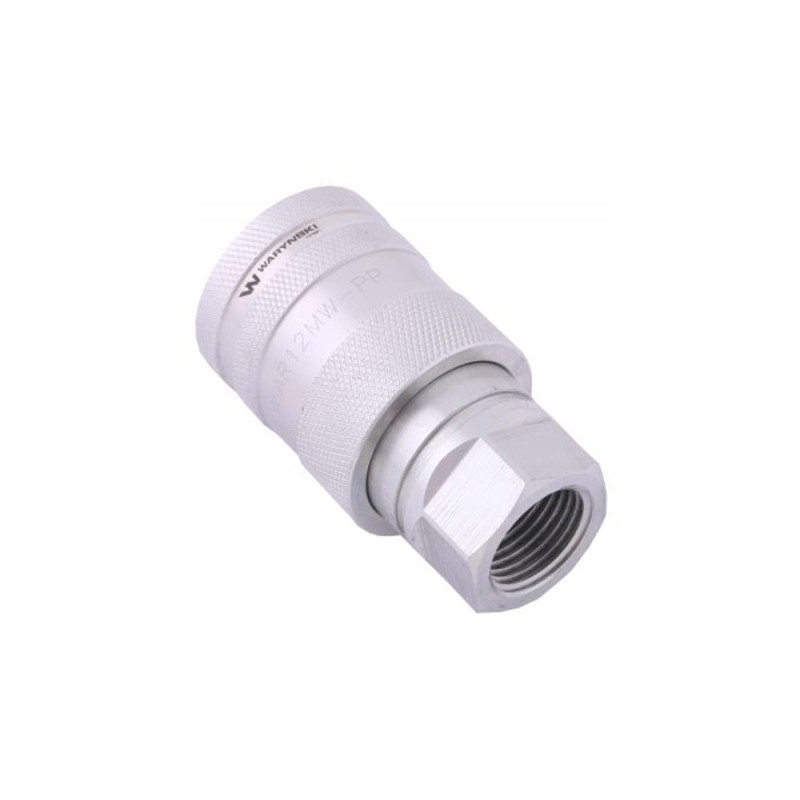

Hydraulic quick connector, socket G1 2, internal Euro pp

HYDRAULIC QUICK COUPLING SOCKET G1/2'' BSP INTERNAL THREAD EURO PUSH-PULL (ISO 7241-A) WARYŃSKIHydraulic quick coupling Waryński - EURO socket (PUSH-PULL).

The most popular hydraulic quick connectors with a very wide range of applications. This one

The type of quick connector socket protects against cable breakage hydraulic system and loss of hydraulic oil in case of unintentional use tension - e.g. driving away the tractor without disconnecting the hydraulics from the connected machine (installation of the quick coupler socket to the body/housing in the tractor using the locking sleeve).

Quick connectors are designed in accordance with dimensional and quality requirements ISO 7241 Series A standard, which specifies in detail the characteristics and dimensions to enable

compatibility of quick connectors produced by different manufacturers according to this standard. Interchangeable with ISO-A quick connectors from other manufacturers.

such as: Parker, Faster, Stucchi, DNP, Tema and others.

Specification:

Operating temperature - from -25°C to +120°C

Thread - Internal 1/2'

Max working pressure - 15.0 Mpa / 150 bar Standard - (EURO), ISO-7241-A (ISO-A)

Type - PUSH-PULL

socket Cone - thread - BSP

Fits plugs - WIAM14SZ, WIAM16SZ, WIAM16SZL, WIAM18SZ, WIAM18SZL, WIAM22SZ, WIAM22SZL, WIAM20SZ, WIAR12SW, 9100820W, 9100816W, 9100818W, 9100822W, 9100814W, 910082 0W, WIAM18SW, WIAM22SW

Fits the cover - RM-GNIA12Z, 5049004EURO

Group - Quick connectors

No. catalog: WIAR12MW-PP

Application:

Quick connectors used in agricultural, forestry, industrial and construction machines. Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism (works in both directions) makes it easy to connect the plug to the socket, often with one hand.

Producer: Waryński

WIAR12MW-PP
