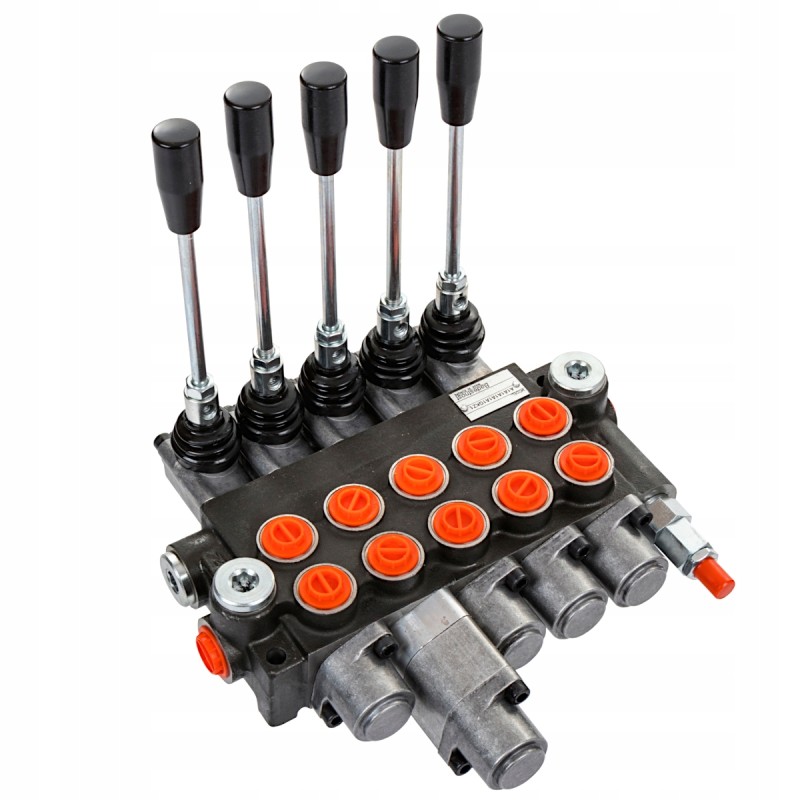

Hydraulic distributor 40l 5 sec 1 sec floating

Hydraulic distributor 5-section 40L 1 sec floating MIZAR number: 63648

5-section hydraulic distributor 40L 1 sec floating

Widely used in hydraulic systems in construction, agriculture and industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, aurochs, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

The floating section has 4 positions:

1 - actuator advance

0 - distributor in neutral position,

2 - return of double-acting actuator

3 - lowering the single-sided actuator (in the case of a double-sided actuator - this position allows it to 'float', which is used e.g. in snow plows)

In the floating position - 3 - the section has a latch that holds the distributor lever in this position (so-called free flow)

Parameters:

Operating temperature: 15 / +80°C

Capacity: 40L/ min

Internal threads in the body:

Supply connection port: 1/2''

Return connection port: 1/2''

Connection ports sections: 3/8''

Looking from the valve:

1st section double acting

2nd section double acting

3 . double-acting section

4. double-acting section with floating function

5. double-acting section

PRESSURE RANGE:

Maximum pressure on the supply: 250Bar

Maximum pressure on the return: 50Bar

Maximum pressure on the sections: 300Bar

Overflow valve factory set to 175Bar

High quality splitter. Made in Bulgaria.

MIZAR number: 63648
