Pf10890 tip dn10 1 2 bsp 90

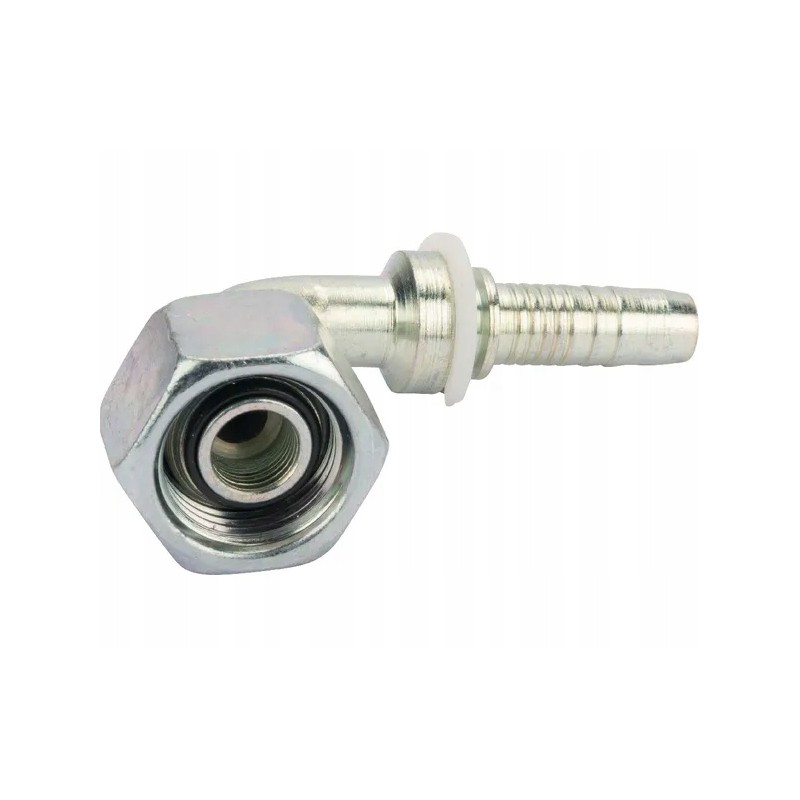

PF10890 End cap DN10-1/2 BSP-90° EAN

8716106786558

Product details

O-ring

Includes< p>

Tips

O-ring

Cone angle

60 °

Shape

Elbow - 2 sides of connection

Connector type no. 1

Conical

Connector type no. 1 - male/female

Female< p>

Type of connector no. 1 - code

DKOR

Length of connector no. 1

33 mm

Connector thread diameter

1/2 inch

Connector Thread Type

BSP

Wrench Size for Connector No. 1

27.0 mm

Connector type no. 2

Hose connector

Connector type no. 2 - male/female

Male

Diameter of connection no. 2

3/8 inch

Diameter of connection no. 2

10 mm

ISO standard

228

Angle

90 °

Material

Steel

Surface treatment

Galvanized

White passivated

OE reference number

H1220893-060800

Connection

Nut BSP nipple with 60° external cone

Application

BSP screw connections

Type

DKOR
