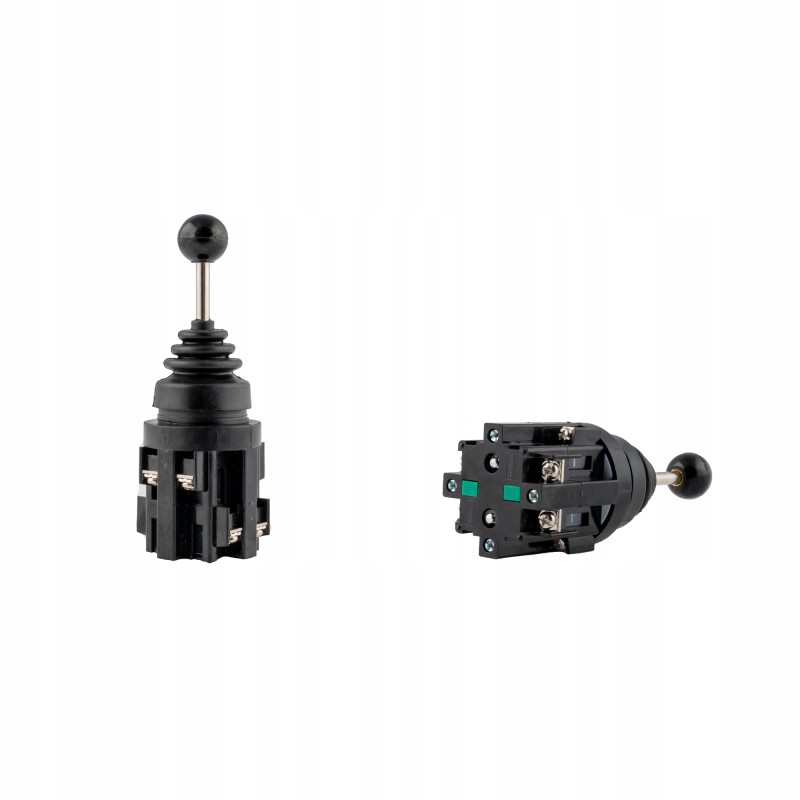

JOYSTICK FIVE-POSITION BISTABLE ELECTRIC MANIPULATOR Production:

Original product of the Hydrolider brand, manufacturer's symbol: 1.10.61.003

Application:

Widely used in hydraulic systems in agriculture, construction and industry.

Lever manipulator, enables control of two sections in an electrically controlled hydraulic distributor 12V and 24V.

Technical data:

Dimensions: 51 x 55 x 126 mm

Lever material: Steel

Operating method: Bistable (with latch)

Number of working positions: 4

Contact sets: 4 x NO

Load capacity of AC contacts: 6A / 250V (with resistive load)

DC contact load capacity: 2.2A / 110V (with resistive load)

Min. insulation resistance: 100MΩ

Test voltage: 2.2kV

Mechanical durability: 5*1050 cycles

Electrical durability: 5*1050 cycles

Operating temperature: -20....50°C

General information:

It has 5 stable positions, a neutral middle position.

If the control person releases the joystick, the lever will remain in the working position.

Designed for installation in a Ø 30 mm hole. Installation is done by unscrewing the lever ball, unscrewing the ring with cover, inserting the joystick through the hole and re-screwing the ring and ball. It has a rubber sealing cover that protects against dust, water and is resistant to oil.

Three-position joystick, example operation with a 1-section distributor:

Neutral position 1 (lever vertical), cylinder piston rods are standing - oil goes to the overflow.

Working position 2 (lever in the forward position), the piston rod of the first cylinder extends.

Working position 3 (lever in the backward position), the piston rod of the first cylinder retracts.

Working position 4 (lever in the left position), the piston rod of the second cylinder extends.

Working position 5 (lever in the right position) the piston rod of the second cylinder retracts.
