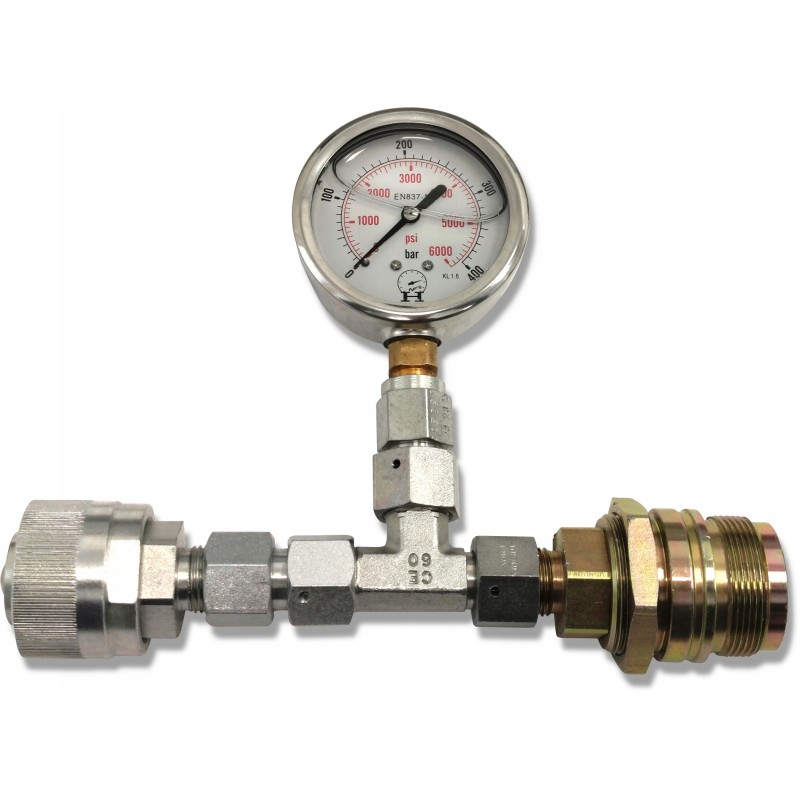

Pressure gauge with a set of 400 screw-on quick connectors

MEASURING SET FOR CHECKING PRESSURE IN A HYDRAULIC SYSTEM SKRAW-MET CODE: [8048] GLYCERINE MANOMETER WITH A SET OF SCREWED QUICK CONNECTORS PRESSURE MEASUREMENT RANGE: 0 - 400 Barmanometers intended for measuring liquid pressure in closed systems for measuring the pressure of gases and liquids that do not react with copper alloys.

Pressure gauge inside filled with glycerin. The glycerin manometer differs from standard manometers by having an interior filled with glycerine, which secures and protects the pointer against vibrations and oscillations.

Glycerine also allows you to increase the level of measurement accuracy.

It has a plug to equalize the pressure inside the manometer with the atmospheric pressure.

Application: The glycerin manometer perfectly checks in hydraulically powered machines and devices.

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

(REVIEW PHOTO - depending on the delivery, the pressure gauge and other elements may differ visually, but their functionality is identical to the description.) Set components: [0313] Hydraulic manometer, pressure gauge 0 - 400 BAR

[1403] G1/4' manometric connector - M18x1.5

[1412] T-connector with adjustable nut X-ELV 12L DKO 18x1.5 / 18x1.5 / 18x1.5

[1411] Straight connector DMO 12L / 12L M18x1.5 / M18x1.5

[1423] Screwed hydraulic quick connector valve plug OLD TYPE M18x1.5

[1422] Screwed hydraulic quick connector socket OLD TYPE M18x1.5

Technical data: Pressure measurement range: 0 - 400 Bar

Clock outer diameter: 63 mm

Clock thickness: 30 mm

Port connection thread [BSP]: 1/4' (a special connection is required, available on our other auctions)

Operating temperature: -10°C to +50°C

Accuracy class: 1.6

Material: steel housing, glass viewfinder
