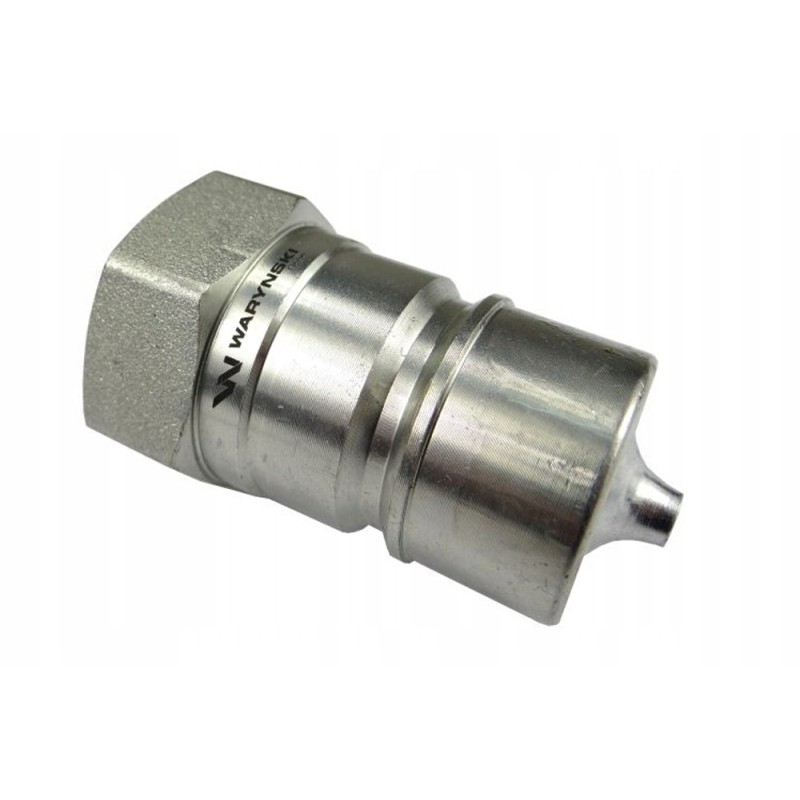

HYDRAULIC QUICK CONNECTOR PLUG G3/4'BSP FEMALE THREAD ISO 7241-A WARYŃSKIHigh quality hydraulic quick connector Waryński - ISO-7241-A plug.
The most popular hydraulic quick connectors with a very wide range of applications.
Quick connectors are designed in accordance with the dimensional and quality requirements of the standard ISO 7241 Series A, which details characteristics and dimensions to enable compatibility of quick connectors produced by different manufacturers in accordance with this standard. Interchangeable with ISO-A quick connectors from other manufacturers such as: Parker, Faster, Stucchi, DNP, Tema and others.
Specification:
Operating temperature: from -25°C to +120°C
Thread: Internal 3/4'
Max working pressure: 25.0 Mpa / 250 bar Standard: (EURO), ISO-7241-A (ISO-A)
Fits sockets: WIAR34MW,
Cone - thread: BSP
Type: Plugin
No. catalogue: WIAR34SW
Application:
Quick connectors used in agricultural, forestry, industrial and construction machines.
Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism makes it easy to connect the plug to the socket, often with one hand.
Producer: Waryński
WIAR34SW
