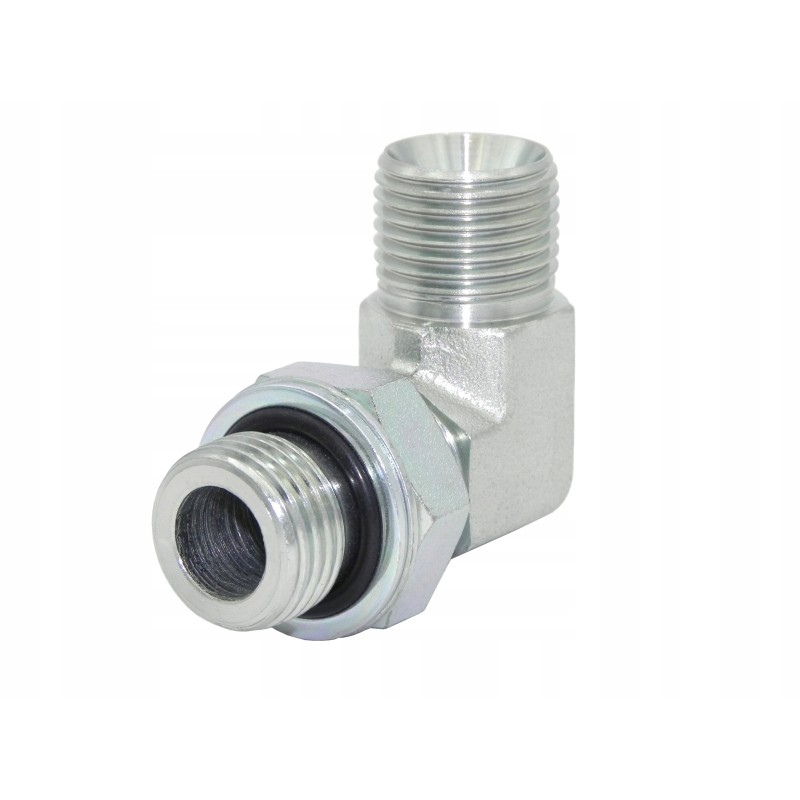

Hydraulic elbow with locknut BSP 1 2

HYDRAULIC ELBOW WITH BSP 1/2'' LOCK NUT Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Elbow connection bodies included in the set with locknut (lock nut), sealing washer and gasket. The connectors are intended for installation in actuators, pumps and hydraulic distributors. One side of the flat connection without a cone is called the connection side (with a seal and locknut), the other side with an external thread and a cone for connecting to the hydraulic hose.

Technical data:

Thread on both sides sides: external inch BSP 1/2''

Nominal pressure: 180bar

Maximum pressure: 230bar

Fluid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant

We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
