Cvv0471415f quick connector socket m14x1 5 8l panel

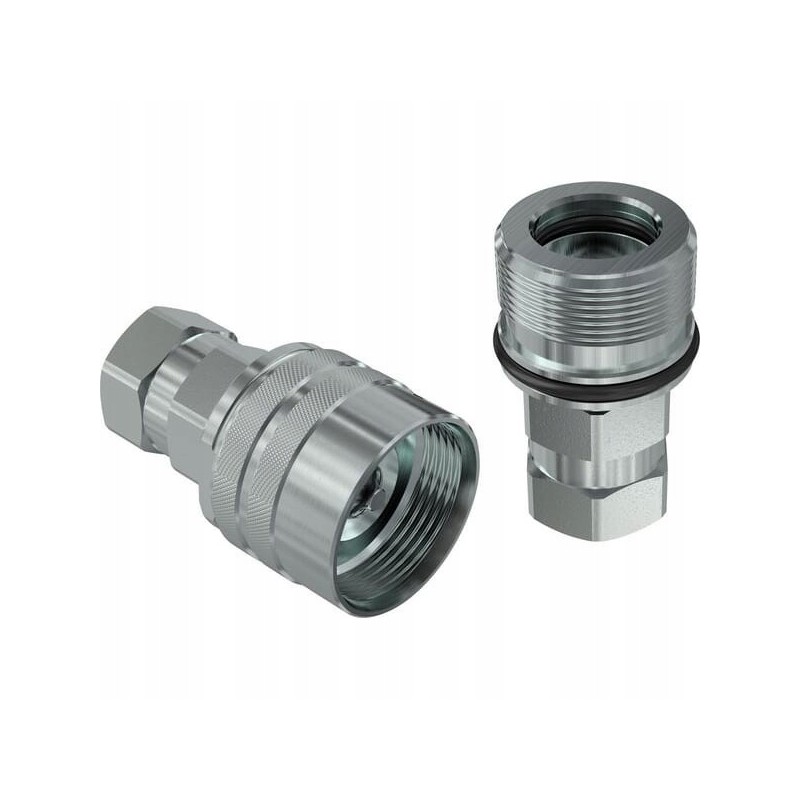

Quick connector socket M14x1.5-8L - panel INDEX: CVV0471415F

Material: Steel

Valve type: Poppet

C: 75mm

D: Rd 36 x 2mm

Size: 6.3mm

Outside diameter: 24mm

ISO standard: 14541

8434-1-L

Standard: ISO 14541

Surface treatment: Chrome plated

Connector thread type: Metric

Weight: 123.3g

Total length: 74mm

Seal material: Nitrile rubber [NBR]

Nominal pressure: 400BAR

Weight: 125.3g

Working pressure: 350BAR

Connector type no. 2 - male /female: Male

Possibility of connection under pressure: Yes

Max operating temperature: 125°C

Min operating temperature: -25°C

Quick connector lock type: Thread

Connection method: Screwed

Max flow: 75l/min

Y: 19mm

Disconnection method: Screwed

P: 26mm

Thread type: 7

Diameter at the end of the plug: 22mm

diameter on the thread side: 8.2mm

Connector no. 1 type - male/female: Female

Connector no. 1 key size: 19

19mm

Connector thread type no. 1 - code: 07

Q max. (l/min): 50l/min
