• Online only
Elbow with locking nut bsp 1 2 orfs 1
  • Elbow with locking nut bsp 1 2 orfs 1
  • Elbow with locking nut bsp 1 2 orfs 1

Elbow with locking nut bsp 1 2 orfs 1

15012753654587
£20.80
Quantity
5 Items

Description

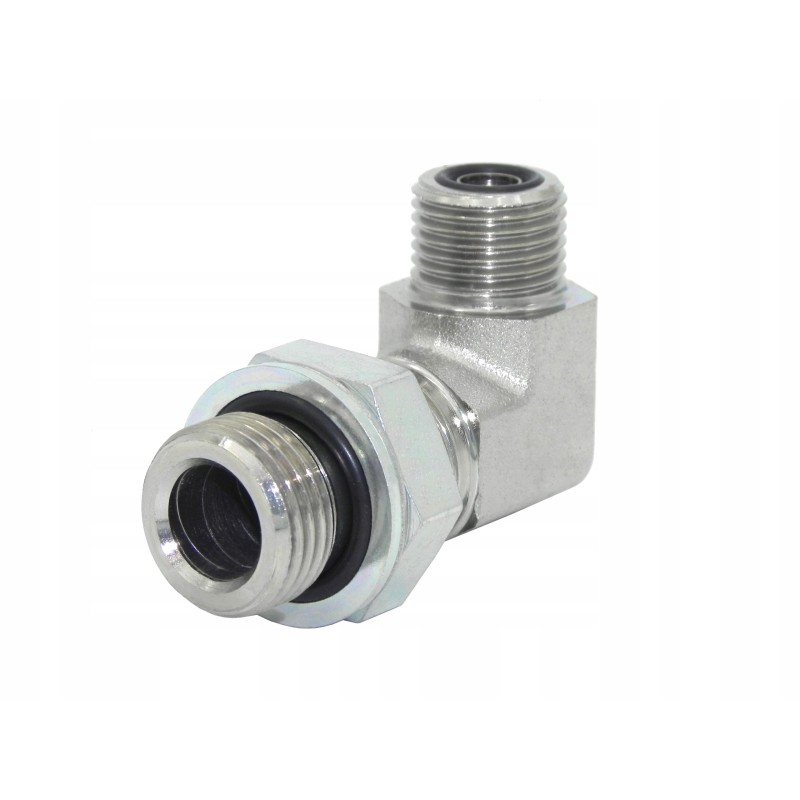

HYDRAULIC ELBOW WITH LOCK NUT BSP 1/2'' - ORFS 1'' Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The bodies of the elbow connections are supplied with a locknut. The connectors are intended for installation in actuators, pumps and hydraulic distributors. One side of the flat connection without a cone is called the connection side, the other side with external thread and cone for connecting to the hydraulic hose.

Technical data:

Thread on the connection side: external inch 1/ 2''

Thread on the other side: external inch ORFS 1''

Nominal pressure: 180bar

Maximum pressure: 230bar

Type of liquid: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

Our offer includes most types of hydraulic motors as well as the complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15012753654587
KPN G1/2/O1
5 Items
New

Data sheet

Manufacturer
Perfect Hydraulic
Part Number
KPN G1/2/O1
