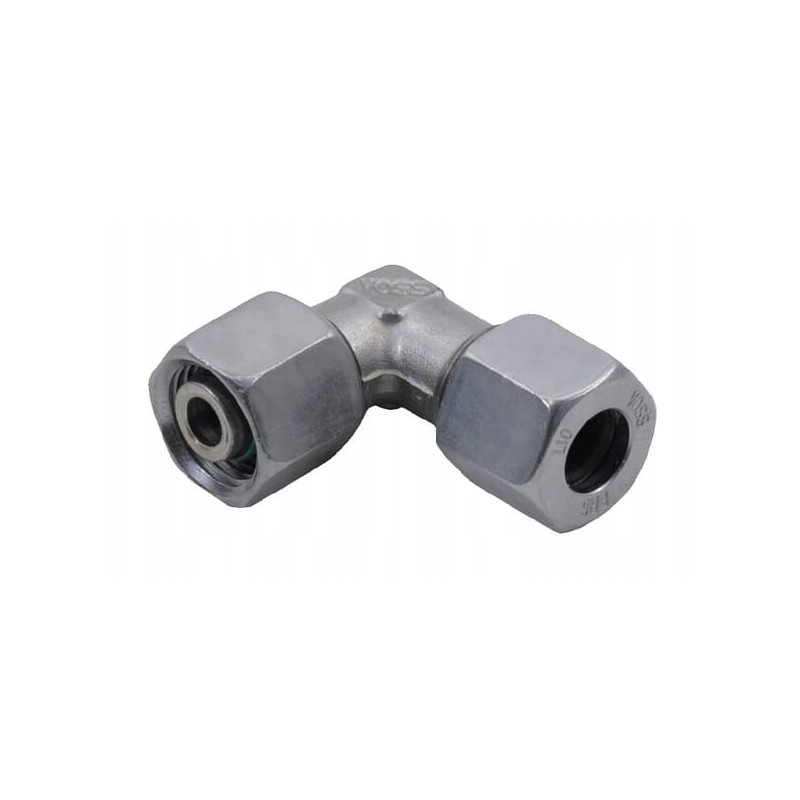

Adjustable elbow connector 28l ewvd28l voss

Adjustable elbow connector 28L Parameters

Part number: EWVD28L

Unit: piece

Manufacturer: Voss

Shape: Elbow - 2 sides connection

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter: 28 mm

Connector thread diameter: M36

Thread pitch Connector No. 1: 2 mm

Connector Thread Type: Metric

Connector Type No. 2: Conical with O-Ring

Connector No. 2 Type - Male/Female: Female

Connection No. 2 Diameter: 28 mm

Connector No. 2 Thread Diameter: M36

Thread pitch of connector no. 2: 2 mm

Thread type of connector no. 2: Metric

Pipe diameter: 28 mm

Angle: 90 °

Working pressure max.: 160 BAR

Series: 28L

Installation size 2 [L1]: 41 .5 mm

Installation size [L]: 30.5 mm

Pressure: PN (nominal pressure) and Temperature acc. to DIN 2401. BAR

L2: 47 mm

Mounting size 4: 36 mm

Mounting size: 30.5 mm

Spanner width [S2]: 41 mm

Specifications

- Cutting ring 2S

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimum connection to the cutting ring and perfect operation - High corrosion resistance Technical information

- Available on request in a stainless steel version - Viton

gasket available on request
