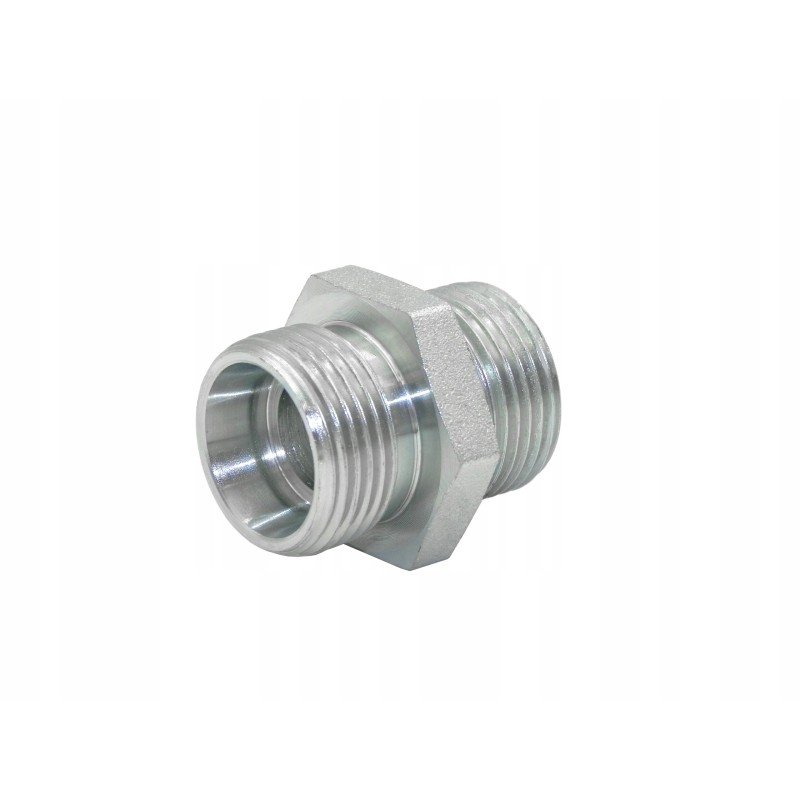

Hydraulic coupling connector 20x1 5 12s 22x1 5 14s

HYDRAULIC CONNECTOR CONNECTOR M20x1.5 12S - M22x1.5 14SApplication: Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry. Standardized connector, light version with conical clamping self-sealing when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.

Technical data:

Thread on one side: external metric 20x1.5 12S - heavy standard

Thread on the other side: external metric 22x1.5 14S - heavy standard

Nominal pressure: 180bar

Maximum pressure: 230 bar

Type of liquid: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
