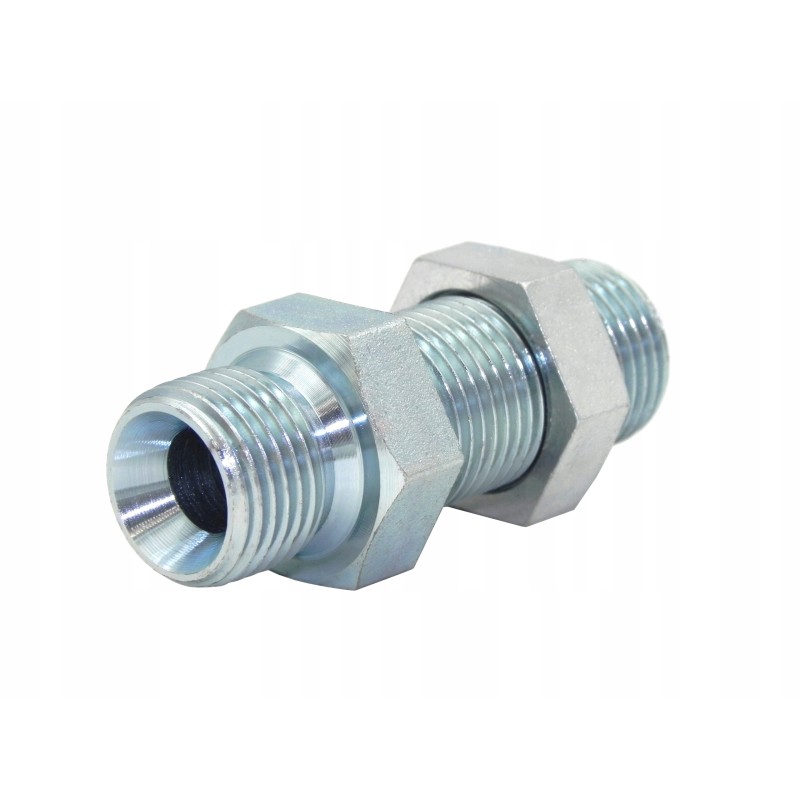

BSP 1 4 bulkhead hydraulic connector
  • BSP 1 4 bulkhead hydraulic connector
  • BSP 1 4 bulkhead hydraulic connector

BSP 1 4 bulkhead hydraulic connector

15010420400214
£11.35
Quantity
5 Items

Description
HYDRAULIC CONNECTOR BSP 1/4'' - BSP 1/4'' BULKHOLD Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Standardized light version with conical self-sealing clamping when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, there are connections that can be purchased at our other auctions.

Technical data:

Thread on both sides: external inch BSP 1/4''

Pressure nominal: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant< p>

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15010420400214
WITH G1/4 BUNDLE
5 Items
New

Data sheet

Manufacturer
Perfect Hydraulic
Part Number
WITH G1/4 BUNDLE
