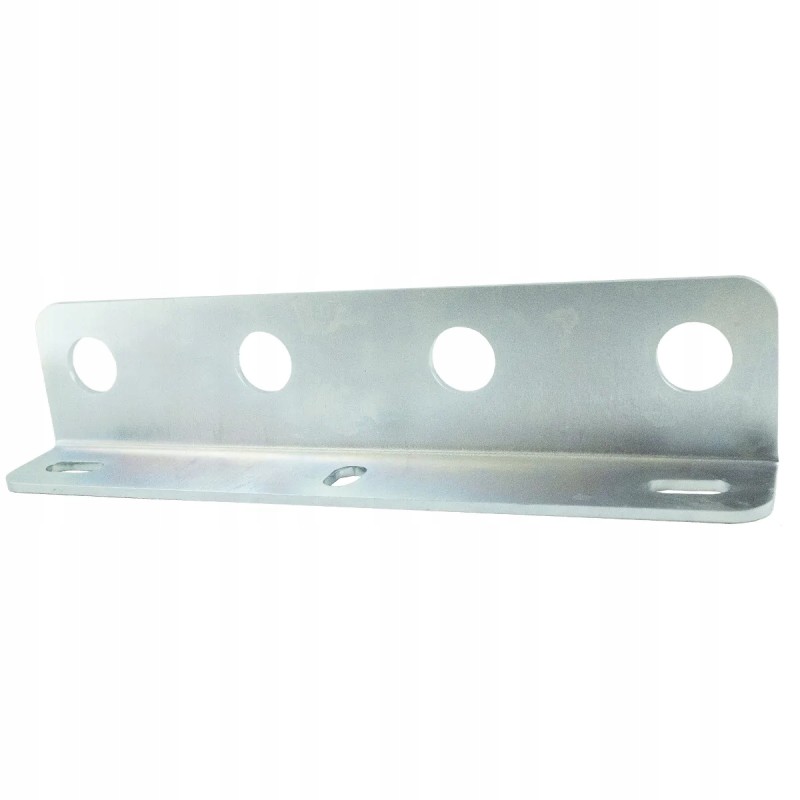

Low hydraulic socket panel with 4 sockets

Traktor_com_pl offers: Board of low hydraulic sockets for 4 sockets4farmer.com.pl

Board of hydraulic sockets for four hydro-connectors, with a total width of 220 mm and a height of 50 mm. 3.20 mm thick sheet with holes for 4 sockets with a diameter of 18 mm and holes for mounting screws with dimensions of 9.30 x 15/19 mm. The mounting allows the installation of two types of hydraulic connectors with a diameter of M18 and M16.

The mounting of hydraulic quick connectors is an element commonly called a board and is used to install hydraulic sockets in tractors, construction machines and many other devices. In agriculture, they are very often used to attach Euro hydraulic connectors, in front loaders on the tractor trailer itself, at the hydraulic distributor, or mounted behind the driver's seat to operate hydraulically powered machines or devices. This type of solution can be used in all machines and devices in the broadly understood industry, including construction, agriculture and the forestry industry using hydraulic connections. The board can be screwed or permanently welded directly to the surface.

Condition: New

Parts: Hydraulic system

Width (mm): 220

Thickness (mm): 3

Hole spacing (mm): 60

Height (mm): 50

Hole diameter (mm): 18

Spacing of holes for mounting screws (mm): 60

Diameter of holes for mounting screw(s) (mm): 9.30 x 15/19

Dimensions:

Width: 220 mm,

Height: 50 mm,

Diameter of holes for hydraulic connectors: 18 mm,

Spacing of holes for euro connectors: 60 / 60 / 60 mm,

Diameter of holes for mounting screws: 9.30 x 15/19 mm,

Spacing of holes for mounting screws: 88 / 88 mm,

Sheet thickness: 3 mm,
