Elbow with locknut BSP 3 8 m20x1 5 12s

HYDRAULIC ELBOW WITH LOCK NUT BSP 3/8'' - M20x1.5 12SApplication:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

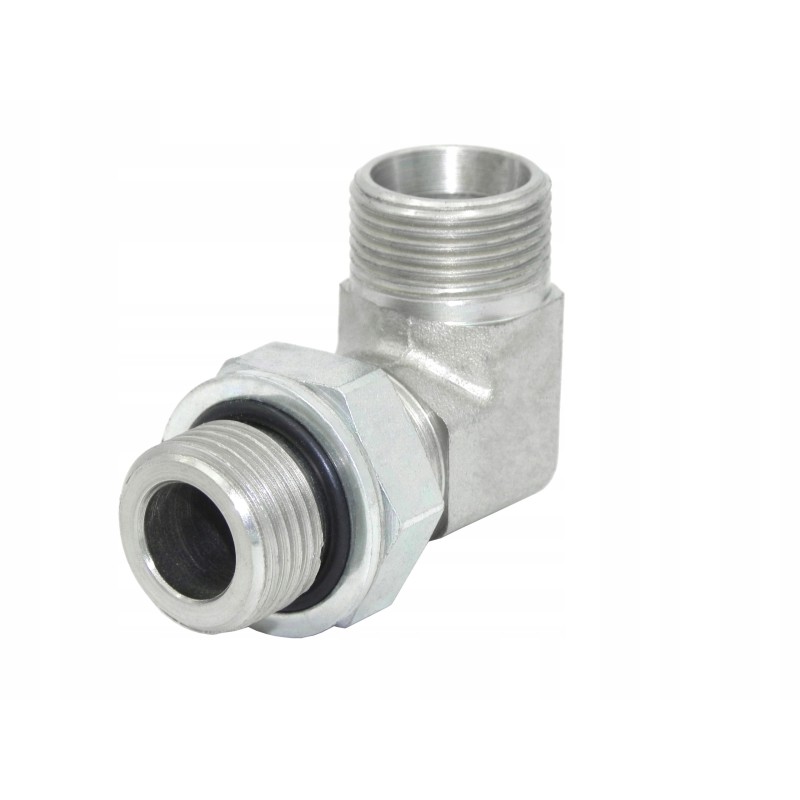

Elbow connection bodies included with a lock nut (lock nut) and a washer sealing and gasket. The connectors are intended for installation in actuators, pumps and hydraulic distributors. One side of the flat connection without a cone, called the connection side (with a seal and lock nut), the other side with an external thread and a cone for connecting to the hydraulic hose.

Technical data:

Thread on the connection side: external inch BSP 3/8''

Thread on the other side: external metric 20x1.5 12S - heavy standard

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

welded, galvanized steel, corrosion-resistant

Our offer includes most types of hydraulic motors such as and also a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
