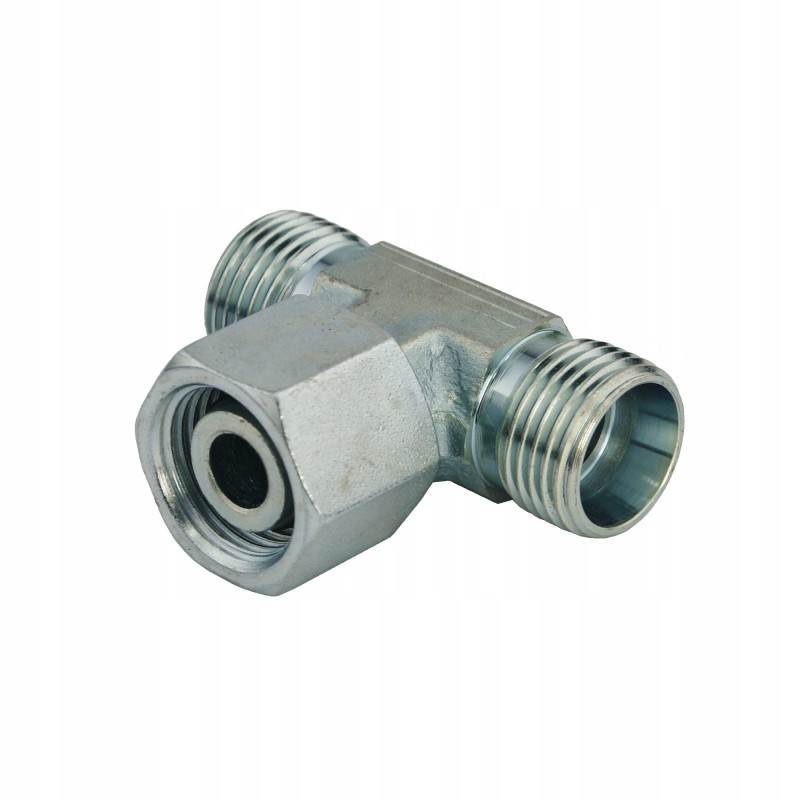

Hydraulic tee connector type bab 27 27 27

HYDRAULIC CONNECTOR, T-PIECE BAB 27/27/27 Production:

Hydrolider, symbol: 1.60.57.022.1

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

T-connector, standardized light version with conical clamping self-seal when tightening. Designed to connect three hydraulic lines or to connect with other connectors with the same conical system.

It does not have rubber seals or places for a seal, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, there are connections that can be purchased at our other auctions.

Helpful data:

M27x2 thread diameter measured with a caliper:

Outer diameter [mm]: 26.6 - 26.9

Inner diameter [mm]: 24.6 - 25

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Nominal bore diameter: 16mm

Thread on two opposite sides: external metric 27x2

Thread on the foot: internal metric 27x2

Version: light

Nominal pressure : 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
