Knee with locking nut bsp 3 8 orfs 9 16

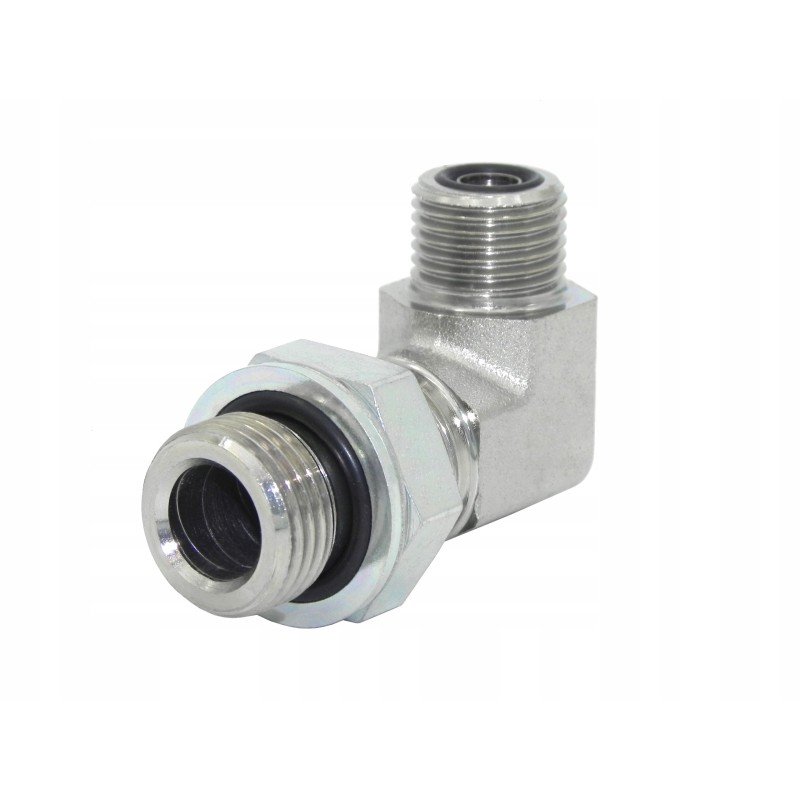

HYDRAULIC ELBOW WITH LOCK NUT BSP 3/8'' - ORFS 9/16'' Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Elbow connection bodies included with a locknut (lock nut). The connectors are intended for installation in actuators, pumps and hydraulic distributors. One side of the flat connection without a cone is called the connection side, the other side with external thread and cone for connecting to the hydraulic hose.

Technical data:

Thread on the connection side: external inch 3/ 8''

Thread on the other side: external inch ORFS 9/16''

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant

We offer most types of hydraulic motors as well as the entire range in the field of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
