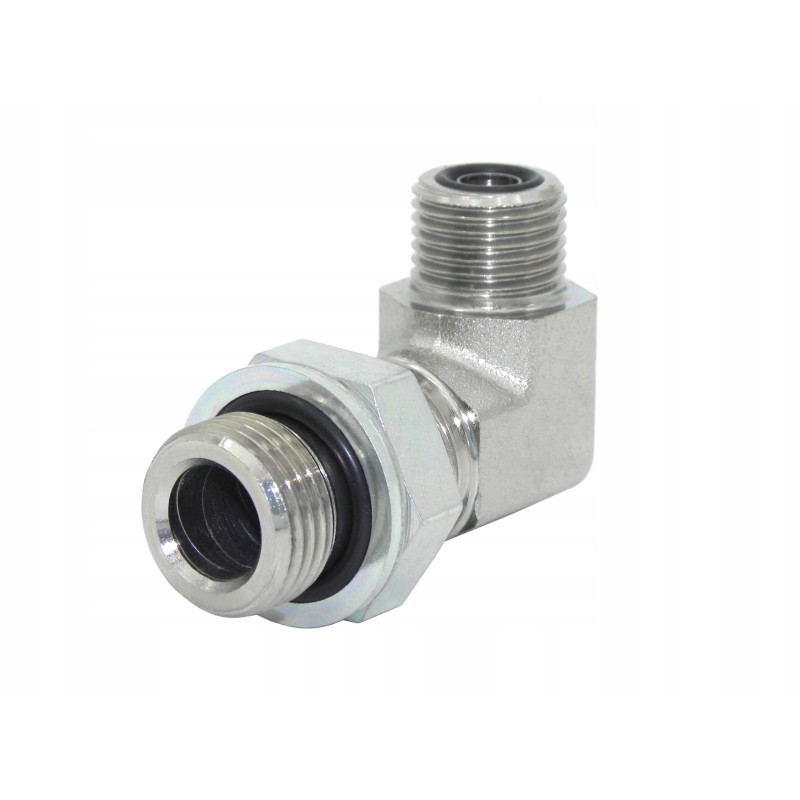

HYDRAULIC ELBOW WITH LOCK NUT BSP 1/8'' - ORFS 9/16''Application:
It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.
Elbow connection bodies included with a locknut (lock nut). The connectors are intended for installation in actuators, pumps and hydraulic distributors. One side of the flat connection without a cone is called the connection side, the other side with external thread and cone for connecting to the hydraulic hose.
Technical data:
Thread on the connection side: external inch 1/ 8''
Thread on the other side: external inch ORFS 9/16''
Nominal pressure: 180bar
Maximum pressure: 230bar
Liquid type: hydraulic oil
Material:
weldable, galvanized steel, corrosion-resistant
We offer most types of hydraulic motors as well as the entire range in the field of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
