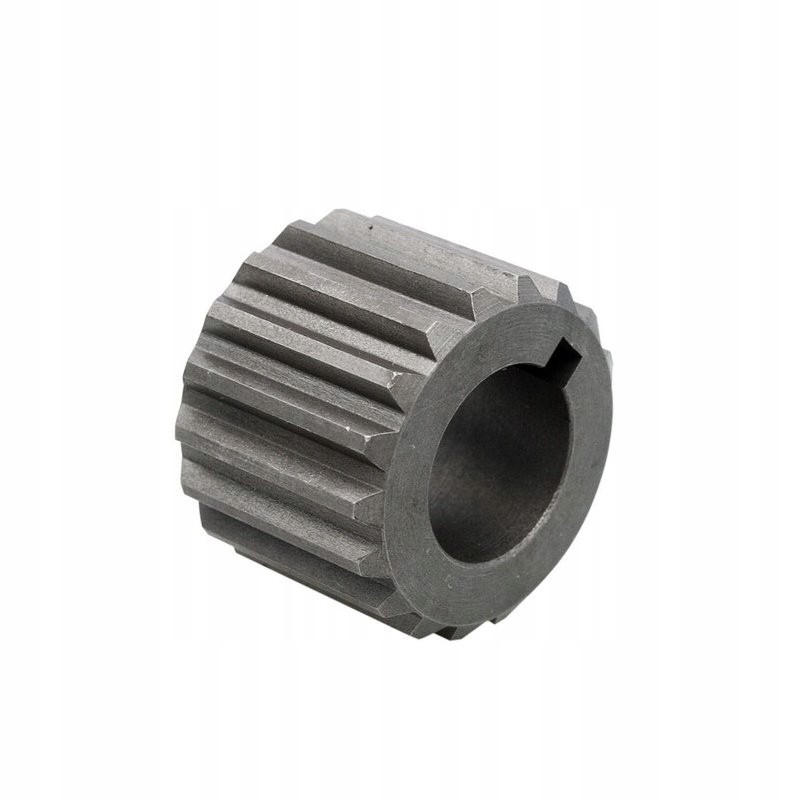

Pump clutch sleeve for multiplier 35x31 z18

SPELLED BUSHING GR3 35X31 Z18 1:8 Production:

Original product of the Hydrolider brand, symbol: 1.45.10.031

Application:

It is widely used in hydraulic systems in agriculture , horticulture, forestry, construction and broadly understood industry.

Splined sleeve, connector of the pump shaft with the drive element, e.g. with pumps of group 2 (20) and 3 (30).

Fits all European type pumps of group 3 (30) with a 1:8 cone shaft

Clutch technical data:

Total length: 26 mm

Number of external cutters: 18

Keyway: 4 mm

Inner hole : conical 1:8

Outer diameter: 34.5 mm

Splined: Z18 x 31 x 35

The sleeve fits, among others, to such multipliers (photo):
