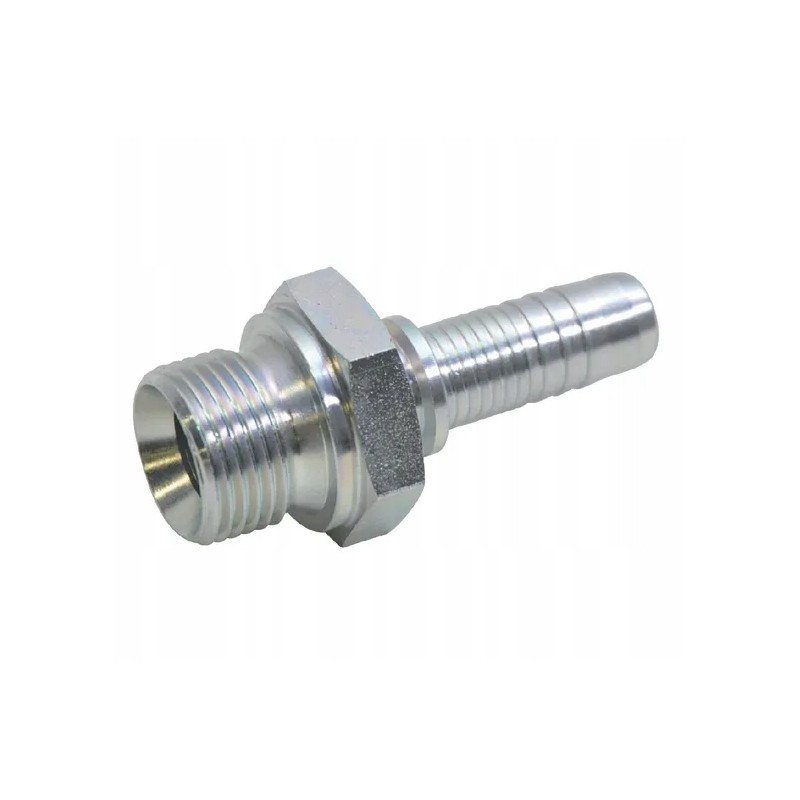

Pn104 tip dn10 1 4 bsp

PN104 End DN10-1/4 BSPCone angle

60 °

Shape

Straight - 2 sides of connection

Connector type no. 1< p>

Conical

Connector type no. 1 - male/female

Male

Connector type no. 1 - code

AGR

Length of connector no. 1

26.3 mm

Connector thread diameter

1/4 inch

Connector Thread Type

BSP

Connector No. 1 Wrench Size

19.0 mm

Connector No. 2 Type

Hose connector

Connector type no. 2 - male/female

Male

Connection no. 2 diameter

3/8 inch

Connection diameter no. 2

10 mm

ISO standard

228

8434-6

Material

Steel

Surface treatment

Galvanized

White passivated

Connection

BSP external thread with 60° internal cone

Application

As a screw-in connector, e.g. for quick connectors

Type

AGR
