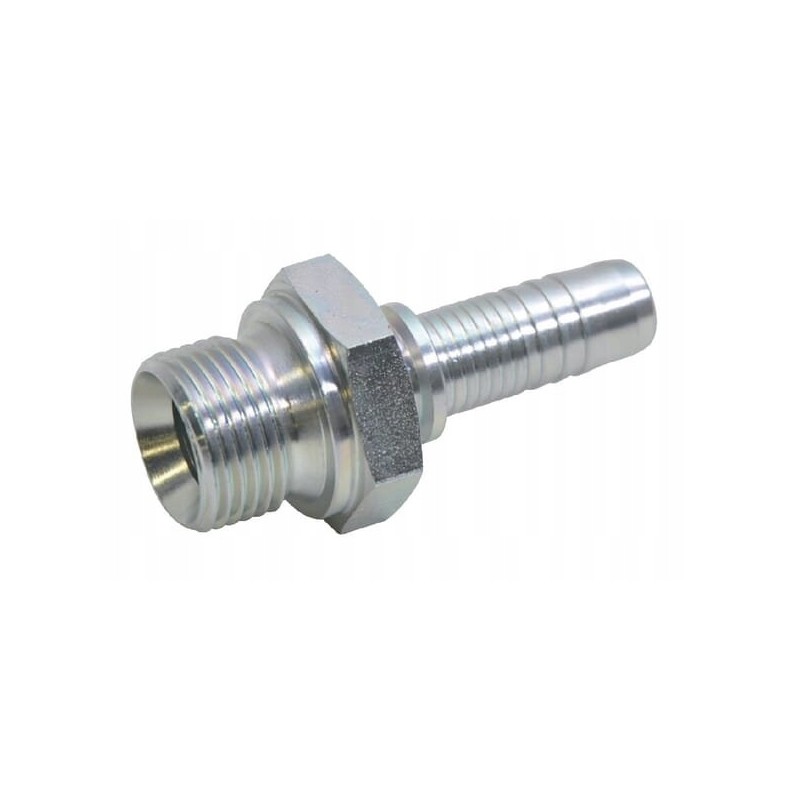

End dn08 1 4 bsp

DN08-1/4 BSP fitting Parameters

Part number: PN84

Unit: Piece

Manufacturer: Alfagomma

EAN: 8716106440788< p>

Cone angle: 60 °

Shape: Straight - 2 sides of connection

Connector type no. 1: Conical

Connector type no. 1 - male/female: Male

Connector type no. 1 - code: AGR

Connector no. 1 length: 26.3 mm

Connector thread diameter: 1/4 inch

Connector Thread Type: BSP

Connector No. 1 Wrench Size: 19.0 mm

Connector No. 2 Type: Hose Barb

Connector No. 2 Type - Male/Female: Male

Connection No. 2 Diameter: 5/16 inch

Material: Steel

Connection: BSP Male Thread with internal cone 60°

Type: AGR

ISO standard

- 228

- 8434-6

Surface treatment

- Galvanized

- White passivated

Application

As a screw-in connector, e.g. for quick connectors
